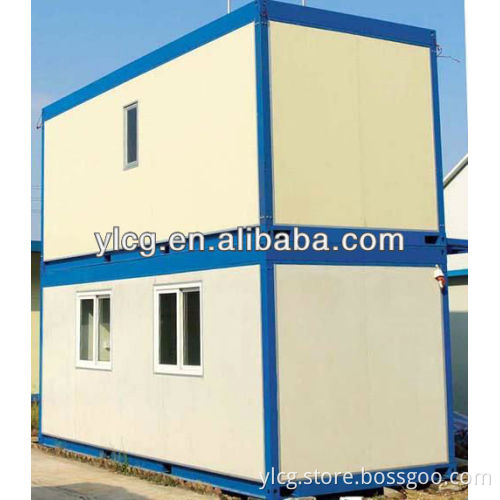

Two storeys combined economic prefab shipping container house

Specifications prefab shipping container house

1.safe and reliable structure

2.earthquake Resistance and fireproof

3.easy installation

Two storeys combined economic prefab shipping container house    Main Material:        1.The roof and wall is EPS sandwich panel. However, there are other materials you can choose, such as the Rockwool sandwich panel, Polyurethane sandwich panel, PU foam sandwich panel.       2.The frame are the C section steel and the Angle iron. The thickness is depend on you!   Other Points:       1.used in building site, low cost, easy installation, reusable.       2.used in building site and can be reused in lots of projects, which is very economical.       3.used for accommodation, office, control center, canteen and so on.       4.The low-cost, easy assemble and disassemble, reusable are the most outstanding advantages of this house.       5.We can design the style according to your different requirements and the building site weathers. It's fireproof, waterproof, quakeproof and heatproof.       6. The partition of the wall is depend on you, we can design what partition you want.       7.Excellent in the feature of typhoon and earquakproofing grade is 8 grades, and the earthquake proofing grade is 7 grades.       8.The using life is around 10-15 years.Environmental protection and economy.
      9.Each worker can assemble 20~30 square meters every day. 6 worker can finish 300sqm prefab house in 2 days.        10.Loading: 320 square meters can be loaded in one 40 feet shipping container.     Specifications:

specifications	thickness	Length(mm)	Wedth(mm)	Reference(kg/m2)
50 serial	50mm	1150 2270 2400 3000	600	43±5
60 serial	60mm			43±5
75 serial	75mm			50±5
90 serial	90mm			55±5
120 serial	120mm			67±5
150 serial	150mm			85±5

  Specifications could be customized accwording tio customers requirement   Technical information of prefab house:  1.Wind resistance: Grade 11(wind speed≤111.5km/h)  2.Earthquake resistance: Grade 7  3.Live load capacity of roofing: 0.5kn/m2  4.External and internal wall heat transmission coefficient: 0.35Kcal/m2hc  5.Second floor load capacity: 150 kg/m2  6.Live load of corridor is 2.0kn/ m2
