aluminum sandwich panel foam core

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Specifications aluminum sandwich panel foam core

1)anti-static

2)fireproof,keep warm

3)environmental protection

4)high-strength

aluminum sandwich panel foam core Specifications

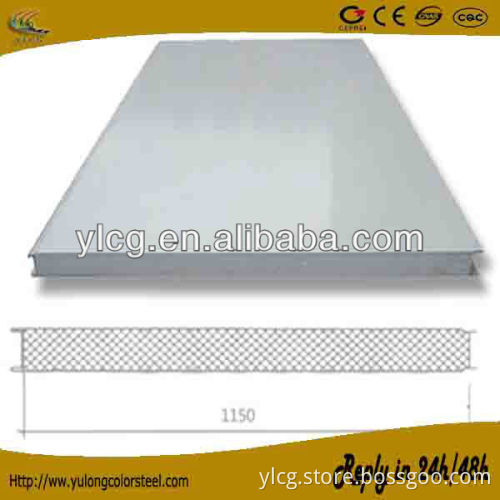

TEM	EPS sandwich panel
MATERIAL	steel sheet + EPS + steel sheet
SPECIFUCATION (mm)	Width	980mm
	Length	≤12,000mm
	Overall Thickness	50~200mm
SURFACE MATERIAL (mm)	Color Coated Steel Sheet
	Thickness	0.3~0.8mm
	Coating	PE or PVDF
CORE MATERIAL	Material	EPS
	Density of Core Material	7-30kg/m3
	Thermal Conductivity	0.041w/m. k
BRAND NAME	Yulong
PLACE of ORIGIN	China (Mainland)
GRADE STANDARD	National Standard Grade
APPEARANCE	Any Color With ribbed
CHARACTERISTICS	Easy to install; light weight; long life service
APPLICATION	Warehouse, workshop
MOQ	One container of 20GP or 40GP, 40HQ

Technical parameters Mechanics Performance Allow the biggest span(suitable for the roof boarding)

Thickness(mm) Loading(KN/M2)	50 75 100 150 200
0.5	3.5 4.2 4.8 6.0 7.0
1.0	2.6 3.2 3.6 4.5 5.3
1.5	1.8 2.6 2.8 3.6 4.2
2.0	1.3 2.0 2.5 3.0 3.5

Note:it’s out of shape that allow<=1/250

Coefficient that conduct heat

Thickness(mm)	50 75 100 150 200
W/m2k	0.663 0.442 0.330 0.220 0.166
Kcal/m2.h.°C	0.570 0.380 0.280 0.190 0.143

Applications 1.construction of object of industrial purpose
2.heating-up of buildings ad constructions
3.inside finishing and some decorative works
4.premises with vacuum and precision-guided equipment
5.refrigerated and heated containers
6.bodies of transport facilities
7.thermal insulation in premises with low temperatures: cooling and freezing rooms, complexes.
