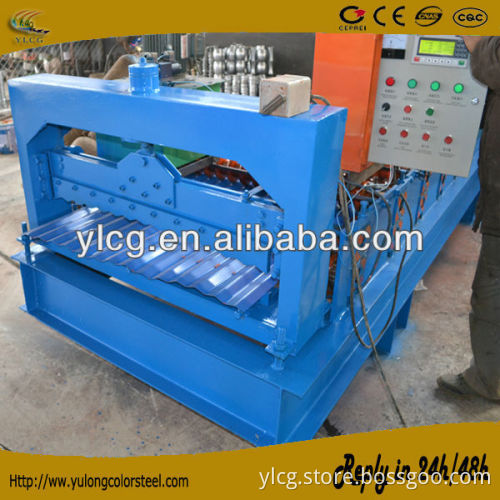

850 corrugated roof sheet roll forming machine

Specifications 850 corrugated roof sheet roll forming machine

1.thick:0.2-0.8mm

2.Hydraulic

3.PLC control

4.fast speed

 850 corrugated roof sheet roll forming machine
1.thick:0.2-0.8mm
2.Hydraulic
3.PLC control
4.fast speed Roll Froming Machine Technical Process Decoiler → Guided Feeding → Roller Molding→ Cutting to Length→ Collection Table Roll Froming Machine Technical Prameters (1). Main Motor Power:4kw (2). Hydraulic Station:3kw (3). Drive Sprocket:Pitch of 25.4mm (4). Number of Stand:12 stands (5). Main Frame Structure:350H welded steel (6). Machine'a Dimensions: 7.5m×1.5m×1.45m (7). Production Speed:10-15 m/min (8). Axis Diameter:80mm (9). Bearing capacity:3-5 tons (10).Rolling Thickness:0.2-0.8mm (11).Material of Rollers:45#steel hard chrome,Hardness HR55°—57°,Solid shaft (12).Unfolding width:1000-1250mm (13).Delivery: 40 days after receiving your deposite.  Roll Froming Machine Packing Standard exporting package for container(fixed with origanic rope and iron wire) Roll Forming Machine Components Manual decoiler--Guiding device--Rolling process--Rollers--PLC cabinet--Oil pump--Cutting device   Note: If you have any special requirements, please contact us for further and correct scheme. Wait your enquiry,thanks!
