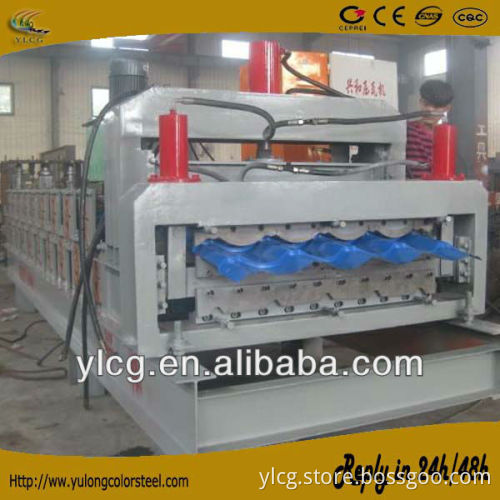

IBR glaze tile double layer roof sheet rolling machine
- Delivery Time:
- 35 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|
1.easy operation
2.high speed
3.can be custom-made
4.duriable
IBR glaze tile double layer roof sheet rolling machine Technical parameters
Model No. | 28-207-828/25-210-840 |
Main moter power | 4 kw |
Hydraulic station power | 3 kw |
Hydraulic oil pump | CB-E310 |
Shearing die | Gr12 |
Sprocket | P-25.4 |
Transmission mode | chain |
The bearing capacity of manual decoiler | 4.5 Tons |
Sprocket chain specifications | 0.6 inch |
Roller station | 9 rows/10 rows |
Main frame structure | 350H steel |
Diameter of principal axis | 75mm |
Material of roller | 45#steel hard chrome Hardness HR55°—57° Solid shaft |
Processing speed | 12 m/min |
Thickness | 0.2-0.8mm |
Unfolding width | 1000mm |
Appliance | Roofing sheet,wall sheet |
Installation dimension about(L*W*H) | 5.8*1.3*1.5m |
Total weight | About 3 Ton |
The whole line including:Manual decoiler,roll forming machine,hydraulic station,hydraulic cutter,PLC control systerm, support. | |
Terms: | |
1. Delivery: 35 days after receiving your deposite. | |
2. Package:Exporte Standard package for container | |
3. Payment:TT(30% deposit by TT in advance ,balance when you see copy B/L for shipping) | |
