25mm thick glass wool insulation

Specifications 25mm glass wool

professional factory

density: 10-48kg/m3

thickenss:25-150mm

AS/NZS48591, CE

  25mm thick glass wool insulation     Product Description       1. Standard Size:
Density:10-48kg/m3
Length:5m-30m
Width:1200mm,600mm
Thickness:25mm-185mm

Item	Products	Density kg/m3	Thickness	Size Length*width
1	Glass wool felt	10	50-150mm	10-30m*1200mm
2	Glass wool felt	12	50-150mm	10-30m*1200mm
3	Glass wool felt	14	40-150mm	10-30m*1200mm
4	Glass wool felt	16	25-150mm	10-30m*1200mm
5	Glass wool felt	18	25-150mm	10-30m*1200mm
6	Glass wool felt	20	25-150mm	10-30m*1200mm
7	Glass wool felt	22	25-150mm	10-30m*1200mm
8	Glass wool felt	24	25-150mm	10-20m*1200mm
9	Glass wool felt	32	25-150mm	10-20m*1200mm
10	Glass wool felt	38	15-150mm	10-20m*1200mm
11	Glass wool felt	48	10-120mm	10-20m*1200mm

Also can produce as request

2.Technical parameter Data

Number	Item	Unit	National Standard	Company Product	Remark
1	Density	kg/m3		10-48	GB483.3-85
2	Avearage Fiber diameter	μm	≤8.0	5.5	GB5480.4-85
3	Hygroscopicity	%	≥98	98.2	GB10299-88
4	Thermal Conductivity	w/m.k	≤0.042	0.033	GB10294-88
5	Noncombustibility	0	Noncombustible	Noncombustible (A)	GB5464-85
6	Sound Absorption Coefficient	0	0	1.03 product reverberation method 24kg/m3 2000HZ	GBJ47-83
7	Highest usage Temperature	°C	≤480	480	GB11835-89

  3: Application

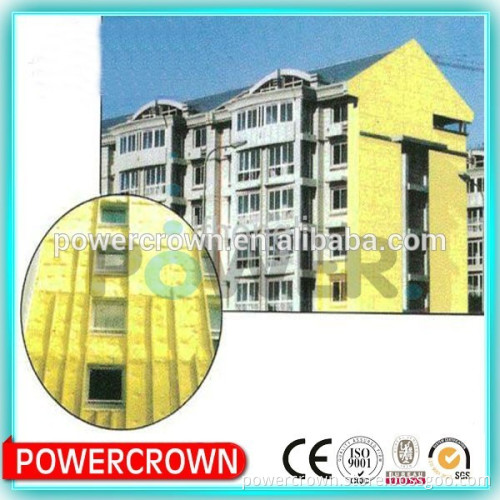

Heat preservation for steel structure building ,
Heat insulation for wall and roof of house to save energy.
For indoor partition wall,Train compartment,
For cool-making and high buildings required to be fireproof,heat resistant and sound insulating.

4.Package

Standard package:Plastic package and weave bag,vacuumized package. Can print any information on weave bag.

5 .PHOTO

Raw Materials List

Packing and Inspection

Loading Containers

Install Project   Our samples is free.   If you have time, welcome to visit our factory.   Company Information         Judy:       TEL: (0086)13383112927   Ph: (0086) 18034598880   Skype: supersale003   QQ: 2220612366   Website: www.crownglasswool.com
