Flexible heat resistance thermal conductivity insulation glass wool rock wool

Specifications OEM

density:10-48kg/m3

thickenss:25-150mm

AS/NZS4859,CE

insulation glass wool rock wool

Flexible heat resistance thermal conductivity insulation glass wool rock wool       we can provide OEM service     Application:    Glass wool board is processed by putting the thermosetting binder into the glass wool, by pressing and heating, and then, by curing. They are used for insulation, ventilation and adjustment of air-conditioner in commercial industry and residential constructions. Meanwhile, they have effect of energy-saving insulation, sound-controlling and improving the indoor air quality.     1. Standard Size:


Item	Products	Density kg/m3	Thickness	Size Length*width
1	Glass wool felt	10	50-150mm	10-30m*1200mm
2	Glass wool felt	12	50-150mm	10-30m*1200mm
3	Glass wool felt	14	40-150mm	10-30m*1200mm
4	Glass wool felt	16	25-150mm	10-30m*1200mm
5	Glass wool felt	18	25-150mm	10-30m*1200mm
6	Glass wool felt	20	25-150mm	10-30m*1200mm
7	Glass wool felt	22	25-150mm	10-30m*1200mm
8	Glass wool felt	24	25-150mm	10-20m*1200mm
9	Glass wool felt	32	25-150mm	10-20m*1200mm
10	Glass wool felt	38	15-150mm	10-20m*1200mm
11	Glass wool felt	48	10-120mm	10-20m*1200mm

Also can produce as request
2.Technical parameter Data   <div >

Number	Item	Unit	National Standard	Company Product	Remark
1	Density	kg/m3		10-48	GB483.3-85
2	Avearage Fiber diameter	μm	≤8.0	5.5	GB5480.4-85
3	Hygroscopicity	%	≥98	98.2	GB10299-88
4	Thermal Conductivity	w/m.k	≤0.042	0.033	GB10294-88
5	Noncombustibility	0	Noncombustible	Noncombustible (A)	GB5464-85
6	Sound Absorption Coefficient	0	0	1.03 product reverberation method 24kg/m3 2000HZ	GBJ47-83
7	Highest usage Temperature	°C	≤480	480	GB11835-89

  3: Application

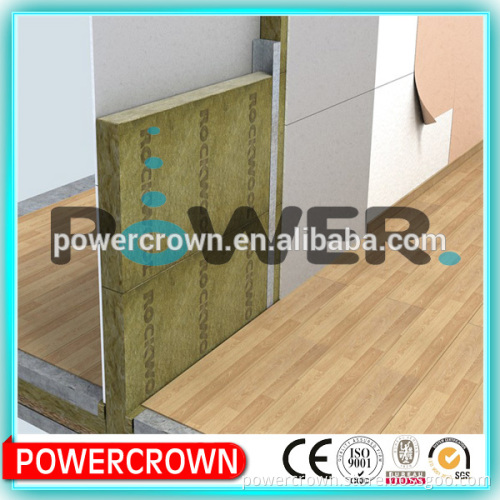

Heat preservation for steel structure building ,
Heat insulation for wall and roof of house to save energy.
For indoor partition wall,Train compartment,
For cool-making and high buildings required to be fireproof,heat resistant and sound insulating.
4.Package

Standard package:Plastic package and weave bag,vacuumized package. Can print any information on weave bag.   4. Related Products       5 .PHOTO

Raw Materials List

Packing and Inspection

Loading Containers

Install Project   We welcome you visit our factory any time!!
