galvanised twisted shank umbrella roofing nails machine

Specifications Automatic Roofing Nail Making Machine

Roofing nails with Dia. from 2.8mm to 4.5mm,

Length from 50mm to 100 mm

  1. Cap Making Machine :

Model
Stroke of slide	65mm
Max shut height	260mm
Table size	400*600mm
Stroke per min.	65 times
Distance between columns	270mm
Max. Inclination of frame	25 degree
Motor	2.2 KW

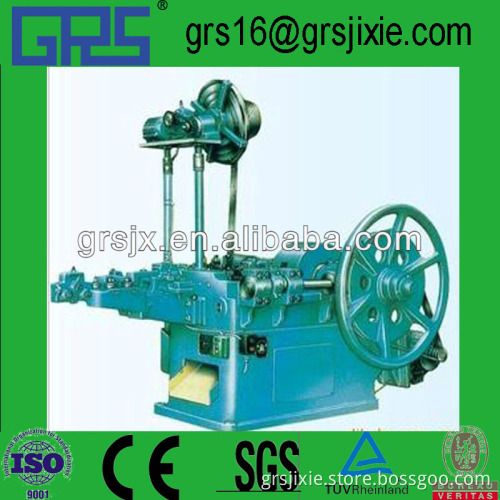

            2. Automatic Corrugated Nail Machine

Type (Unit)	Automatic Corrugated Nail Machine
Max Nail Diameter(mm)	3.8   (0.15 inch)
Min Nail Diameter(mm)	2.38  (0.09 inch)
Max Nail Length(mm)	63.5  (2.5 inch)
Min Nail Length(mm)	38.1  (1.5 inch)
Motor Power (kw)	4
Weight (kg)	2100
Nail Making Speed(pcs/min)	110
Overall dimension(mm)	2436*1512*1720

                      Factory address:   Our factory is located in Shijiazhuang city of Hebei Province, China.   It is 280km south of Beijing.    There is CRH Train from Beijing to our city. It takes about 1 hour and 20 mins.     Contact person:   Cynthia   skype: cyhthia1202   Mob: 0086-13032613755   QQ: 314349393
