Direct Factory Staples Pin Making Machine - Staple Nail Machine Manufacturer

 staple pin making machine direct factory/office staple nail machine manufacture

Staple nail sample photo

Staple nail is produced by following machines:

raw material(galvanized wire and glue)-- wire flattener-- glue combiner-- nail forming machine

Main specifications:

1. Wire flattener

Clamping roller material: hard alloy

max flattener wire diameter: 2.0mm

motor power: 2.2kw

speed: 0-300m/min

dimension: 2500*1500*1900mm3

weight: 600kg

2. Wire gluing combiner(saving engery type)

Motor power: 2.2kw

Heating power: 10.5kw

Rewinding wire speed: 0-15m/min

Max width of glue combiner: 0-150mm

Dimension: 25000*700*1500mm3

Weight: 1200kg

Temperature in heating room: 80 degree

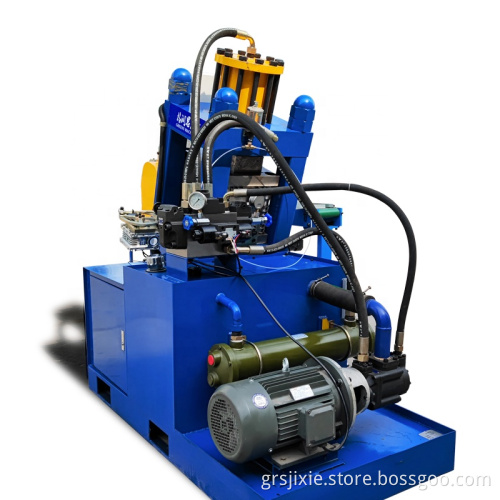

3. staple nail Forming machine

This machine combines hydraulic, pneumatic, and computer control.

Capacity: 60-130 pieces/min

Motor power: 7.5kw

Dimension: 1200*1200*1500mm3

Production capacity:  800kg/8 hours

machine weight:1800kg

Our machine specification

 Any more quetion,please feel free to contact with us.

MP:008615931681161
