Brad staple pin nail machine prices

Specifications brad nail making machine line can produce F,T,N,J ,K nail.

Brad Staple pin nail making machine           1.  Usage and Features:       1.   VFD (Variable Frequency Drive) type, Model YBJ-150 or 200 and   2.   Advanced type, VFD & internally water-cooled press rollers,Model YBJ-150/200     These machine are mainly applied to flatten wires made up of mild steel wire, stainless steel wire, copper wire, aluminum wire, and high-tension steel wire.         Technical Specifications:

Diameter of press roller	ø150 or ø200mm
Wire flattening speed	0~300M/Min
Diameter of feeding wires	Ø 0.4~ø3mm
Precision	± 0.01mm
Motor power	1) ø150 Press Roller:    (1) Stationery staple wire: 2.2Kw    (2)brad nail wire: 3Kw;    (3) Stitching wire: 5.5Kw. 2) ø200 Press Roller: 4Kw
Frequency Inverter	US Emerson brand, 5.5KW, Model: EV1000-4T0055G
Dimensions (main machine)	L x W x H : 1800 x 700 x1300(mm)
Net weight	1280Kg

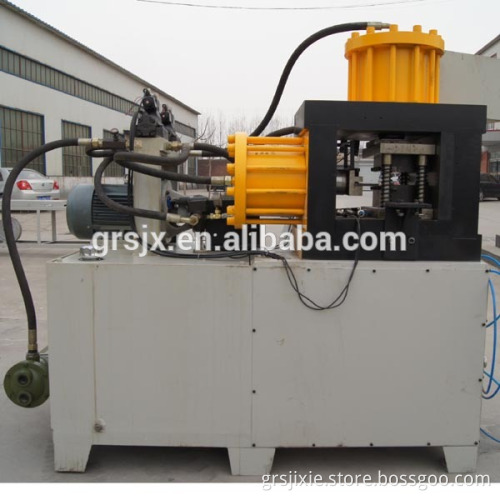

        2. Wire gluing combiner(saving engery type)       Usage and Features:   The Wire Jointing Machine, Model: PXJ-150 we produce is mainly applied for producing wire strips and bands of brad nails,staples, the machine is to joint single wires together into strip or band material, so as to provide various kinds of bands for make-up(forming) machines.   3. staple pin nail forming machine         Technical Specifications :

Model	BNF-2	BNF-3
Max. Capacity	100-120 strips/min.  (50 - 100nails/strip)	55-60 strips/min.  (50 - 100nails/strip)
Brad nail specifications	F10 - F30(F50);T32 - T50(T64)  ( with brad nail strip shape-I )	F10 - F30(F50); T32 - T50 ( with brad nail strip shape-II )
Motor power	7.5kw	11kw
No. of hydraulic cylinder	2	3
Dimensions ( L x W x H)	2100 x 900 x 1500(mm)	2100 x 1200 x 1500(mm)

    Payment: 30% down payment by TT, the balance paid by TT or Irrevocable LC at sight. Nail sample: avaliable for any international client     Contact: Ms gelly zhao Cellphone number/we chat : 008615127182812 Skype: gellyzhao qq: 602586361
