common nail thread rolling machine

Specifications Coiled nails machine :

1.Length of nail:75-100mm

2.Diameter of nail:2.7-3.3mm

3.Capacity (pieces/m):800-1800

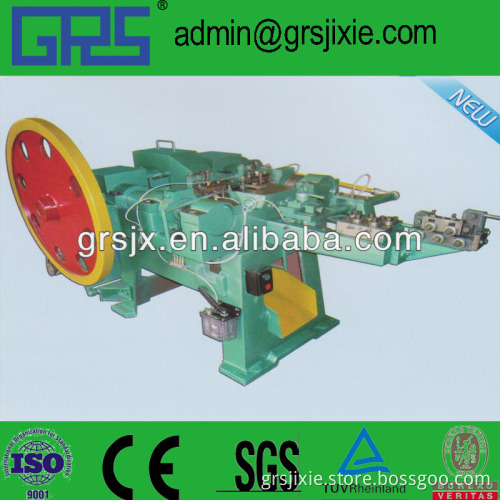

                                       Coil Nail Production Line   Features: This machine adopts plunger type structure to ensure high working speed, low noise and low impact characteristics. and this machine can also make many types of nails that you may wantto produce.   Technical parameter:

Model	Z94-1C Automatic nail making machine	Z94-2C Automatic nail making machine	Z94-3C Automatic nail making machine	Z94-4C Automatic nail making machine	Z94-5.5C Automatic nail making machine
Max. dia. of nail	1.6mm	2.8mm	3.5mm	4.5mm	5.5mm
Min. dia. of nail	0.9mm	1.2mm	1.8mm	2.8mm	3.8mm
Max. Length of nail	25mm	50mm	75mm	100mm	150mm
Min. length of nail	9mm	16mm	30mm	50mm	80mm
Motor power	1.5kw	2.2kw	3kw	4kw	5.5kw
Nail making speed	450pcs/min	350pcs/min	320pcs/min	260pcs/min	200pcs/min
L*W*H	1.5*1.3*1.2m	1.7*1.3*1.4m	2.0*1.4*1.4m	2.2*1.6*1.65m	2.5*1.6*1.5m
W eight	1.2tons	1.45tons	1.8tons	2tons	2.3tons

  Data of coil nail making machine:

Electric parts Title  Parameter Working power Three phare AC 380V 50-60HZ Welding mains DC 290-330V  Rated power 8KVA Max power 12KVA Welding electricity 1000-2000A(secondary side)   Specification Title  Diameter(mm) Length(mm) Speed(piece/minute) Hat-peg 2.7-3.3 75-100 800-1800   Machinery part Title Paremeter Coil  Length×wideth×high=3000×900×1100mm Vibration plate 1500-1850pices/min Air pressure ≥0.4~0.8Mpa Colling water Plus a small pump circulating ,pressure 0.1~0.2Mpa weight About 1600KG     Thread rolling machine   Send your message to this supplier * From: * To: Ms. Andrea You * Messages: Enter between 20 to 4,000 characters. Related Products C Type Nail Making Machine for Upholstery Jobs C24 Hog Ring Staple Making Machine Manufacturers in China C2 C Ring Galvanized Staple Machine Supplier C24 Hot Ring Making Machine Related Keywords Related Keywords nail thread rolling machine , thread nails rolling machine , coil nail making machine nail thread rolling machine , thread nails rolling machine , coil nail making machine You May Also Like You May Also Like C Type Nail Making Machine for Upholstery Jobs C24 Hog Ring Staple Making Machine Manufacturers in China C2 C Ring Galvanized Staple Machine Supplier C24 Hot Ring Making Machine High Speed Low Noise C Type Steel Nail Gluing Forming Machine from Chinese Factory Related Products Best Supplier of Iron Nail Making Machine Facoty automatic new common complete line steel nail machine 2014 hot sales high quality New Z94-C steel nail machine price full-automatic steel nail machine with long using life High speed automatic steel nail machine Product Categories staple production line(30) annealing furnace(27) straightening cutting machine(30) galvanizing production line(32) rivet nail making machine(30) Other auxiliary equipment(31) Screw rolling machine(32) Automatic coil nail machine(27) Automatic roofing nail making machine(29) automatic pneumatic arrayed staple production line(32) common nail making machine(31) Stationary nail machine(30) C type nail machine(31) Ungrouped(32) wire drawing machine(94) straight line wire drawding machine(30) water tank wire drawing machine(32) pulley type wire drawing machine(32) welding electrode production line(16) Rolling-galvanizing machine(10) furnace(11) Tillable quenching furnace(5) Mesh belt furnace(6) galvanized wire production line(17) Common nail production line(36) high speed nail making machine(4) common nail making machine(17) coil nail making machine(12) wire rolling machine(3) Roofing nail production line(7) roofing nail cap making machine(2) roofing nail making machine(5) Drywall screw , self-drilling screw ,tail screw pr(33) heading machine(17) thread rolling machine(15) Washer insert machine(1) Stapler pin , F/T brad nail production line(67) Wire flattener(14) wire gluing machine(7) F/T brad nail forming machine(15) N/K type stapler forming machine(16) J type stapler forming machine(15) C type nail making machine(8)
