Product Description

line production nails making ,wire drawing,polishing machines

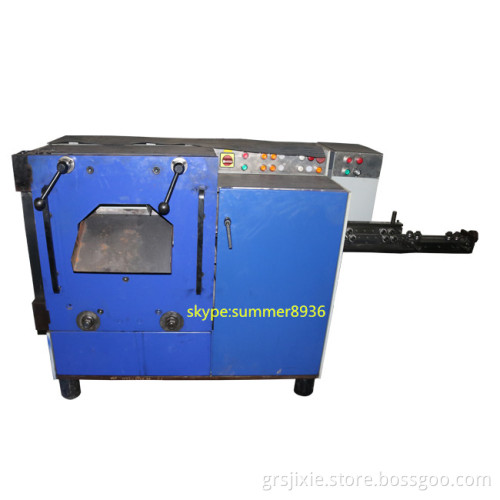

Z94-C TYPE HIGH SPEED LOW NOISE AUTOMATIC NAIL MAKING MACHINE

Key Specifications/Special Features:

This machine adopts plunger type stricture so as to ensure the features such as high speed, low noise and less impact
Especially, it can make the high quality of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun
Maximum diameter of nail: 1.6mm
Minimum diameter of nail: 0.9mm
Maximum length of nail: 25mm
Minimum length of nail: 9mm
Designed output: 450pcs/min
Motor power: 1.5kW
Weight of machine: 560kg
Overall of machine: 1,300*950*1,000mm

assembly line production common nails making/wire drawing/polishing/packing/ machines prices

Z94-C TYPE HIGH SPEED LOW NOISE AUTOMATIC NAIL MAKING MACHINE

Advantage Part:

This High Speed wire nail machines retained basic design and simple operation for Friendly use.

Balanced critical parts results low vibration & enhance life.

All Lubrication parts are served by centralized automated cyclic lubrication system for long life.

A new feeding system permits the use of large wire bundle and maintains close tolerance.

Harden ground wedge type die box for longer life and easy low cost refurbishing.

Round indexable Gripping dies with Eleven Grooves enabling eleven times longer life without any reprocessing.

assembly line production common nails making/wire drawing/polishing/packing/ machines prices

Z94-C TYPE HIGH SPEED LOW NOISE AUTOMATIC NAIL MAKING MACHINE

Technial Parameters:

model	1C-6C	unit
nail length	10-250	mm
nail diameter	1.9-7.0	mm
power	1.5-11	KW
speed	180-340	pcs/min

assembly line production common nails making/wire drawing/polishing/packing/ machines prices

ZD45-100 TYPE HIGH SPEED LOW NOISE AUTOMATIC NAIL MAKING MACHINE

Main Introduction:

ZD45-100 type high speed nail making machine is a combination electromechanical product of high speed and high automatic grade,it has the advantages of high speed and low noise,the speed of this machine is less than or equal to 800pcs/min,the noise is below 76db,the speed is 3 times of the Z94-c NAIL MAKING MACHINE .the noise is 30% lower than common nail making machine.

assembly line production common nails making/wire drawing/polishing/packing/ machines prices

ZD45-100 TYPE HIGH SPEED LOW NOISE AUTOMATIC NAIL MAKING MACHINE

Main Features:

This machine adopts automatic wire releasing ,which changed the condition of different length of nail caused by the unsteady of wire releasing power.

During production,this machine adopts high absorb strength,to separate the nail and waste angle,and absorb the waste angle into the storage bucket.

This machine got the high temperature protection device at knife,mold,rear bearing parts.when the temperature is too high ,nail making error is more than 0.5mm or the sliding part is lack of oil,the machine would stop automatically.it reduced the mechanical accident.

This machine is easy to produce various of nails by changing molds,and is suitable for D type nail producing.

assembly line production common nails making/wire drawing/polishing/packing/ machines prices

ZD45-100 TYPE HIGH SPEED LOW NOISE AUTOMATIC NAIL MAKING MACHINE

Technial Parameters:

model	Motor power	Length of nail	speed	Diameter of nail	weight	Dimension
ZD45-100	Below 10kw	45-100mm	750-800pcs/min	2.4-4.1mm	3100kg	290018001250mm

assembly line production common nails making/wire drawing/polishing/packing/ machines prices

LT2-11TYPE STRAIGHT LINE WIRE DRAWING MACHINE

times of drawing	drum diameter	max inlet diameter	min outlet diameter	speed	single power	input strength	unit
mo

assembly line production common nails making/wire drawing/polishing/packing/ machines prices

POLISHING MACHINE TYPES

300kg 2.2kw 1700*1300*1500mm

600kg 3kw 2000*1300*1500mm

1000kg 4kw 2400*1300*1500mm

1700kg 5.5kw 3000*1500*1500mm

2000kg 7.5kw 3200*1700*1700mm

assembly line production common nails making/wire drawing/polishing/packing/ machines prices
