Popular Wire Drawing Machinery Manufacturing   wire drawing machine :     introduce :

Type:	LW 1 -6/550

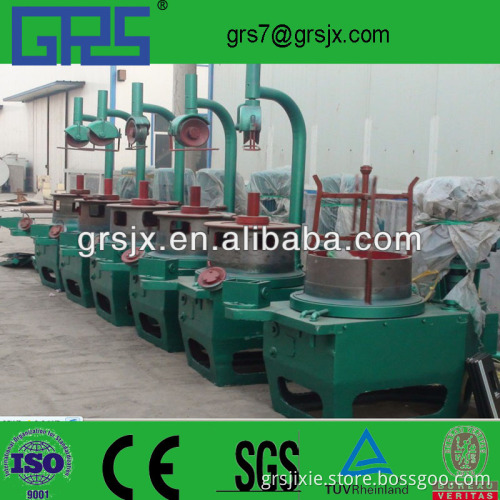

Description:	LW1-6/550 wire drawing machines, drived by gears, are capable of drawing rod wires of high-,medium-,low-carbon steel,copper,aluminium,ect.and appliable to manufacturing industries such as wood screw,nail, conducting wirerope for electrician use,spring,etc. With electrical control,this kind of machine is safe in operation,low in noise,and high in effciency.
Specifications:	Specifications: Modle: LW1-6/550 Diameter of the spool(mm): 550 Drawing range(mm): 6.5-2.2 Speed of the spool(rpm):27-168 Power of a single machine(kw): 15-22 Weight (kg): 1400 Overall dimensions(LxWxH): 6050x1685x2100

  Structure: The equipment consists of main reduction box,die casing,wheel frame,sash brace and electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.   Usage: The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories,such as wire-steel factor,metal mesh factory and nail making factory etc.   In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling water to reduce its working temperature.   The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block   Welcome to visit our factory   contact person : Ms. Sophie   Tel. : 008615931138656, 008615373801631   Skype : xuefei8648 Trademanager id: cn1510577823, cn1001780557
