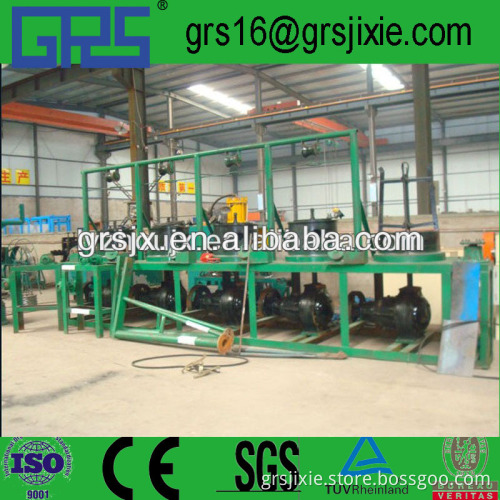

Water Tank Wire Drawing Machine (2.8mm-0.9mm)

Specifications steel wire drawing machine

1.Max. Dia. Of Inlet Wire:6.5mm

2.Min. Dia. Of Outlet Wire:2.0mm

pulley type wire drawing machine      DESCRIPTION   tank type wire drawing machines can draw low, medium and high rate carbon steel wires, stainless steel wires, pre-stressed wire, alloy steel wires and so on, which are suitable for making cord yarn steel wire, rubber hose steel wire, spring steel wire, temper steel head wire, gas-protection welding wire, and stainless steel wire.         SPECIFICATION

Item	Unit	Parameter
		12/350	13/450	17/280
Drum Diameter	mm	Φ600	Φ450-560	Φ360
Drawing Pass	time	11	11-13	16
Maxim Inlet Wire Diameter	mm	Φ6.5-5.2	Φ5.6-4.0	Φ3.2
Minimum Outlet Wire Diameter	mm	Φ3.2-2.2	Φ1.3-2.2	Φ0.6
Total Compress Rate	%	80	84	91
Average Partial Compress Rate	%	18.25	15	14.8
Drawing Speed	m/s	3.8	4.2	5.5
Motor Power	kw	80	55-70	32
Dimensions	mm	5300×3500×1840	5800×3200×1600	4200×2000×1500
Weight	kg	1000	800	650

                          Factory address:   Our factory is located in Shijiazhuang city of Hebei Province, China.   It is 280km south of Beijing.    There is CRH Train from Beijing to our city. It takes about 1 hour and 20 mins.     Contact person:   Cynthia   skype: cyhthia1202   Mob: 0086-13032613755   QQ: 314349393
