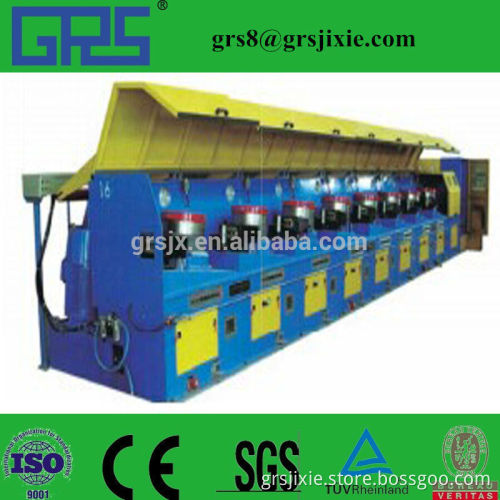

wet straight line wire drawing machine

Specifications straight line wire drawing machine

1.Length of coil nail:25-100mm

2.Diameter of coil nail:1.8-4.5mm

3.Speed:125

                       wet straight line  wire drawing machine   straight line  wire drawing machine  :

Times of drawing	Drum dia	Max inlet dia	Min outlet dia	Speed	Single power	Input strength
2-11	300mm	2.8mm	0.5mm	25m/s	7.5-18.5KW	≤1250MPA
2-11	350mm	3.5mm	0.6mm	20m/s	11-12 KW
2-11	400mm	4.2mm	0.75mm	20m/s	11-30 KW
2-12	450mm	5mm	1mm	16m/s	15-37 KW
2-12	500mm	5.5mm	1.2mm	15m/s	22-45 KW
2-12	560mm	6.5mm	1.4mm	15m/s	22-55KW
2-12	600mm	8mm	1.6mm	12m/s	30-75KW
2-9	700mm	10mm	2.2mm	12m/s	45-90KW
2-9	800mm	12.7mm	2.6mm	8m/s	55-110KW

       Application:   This metal wire drawing mechine  device is uesd to draw vrious kinds of steel wire, welding wire and other metal wire materials.          If you want to buy  straight line  wire drawing machine ,please Contact Candy :   Skype:lin.candy68     Mobile:+8618348882044
