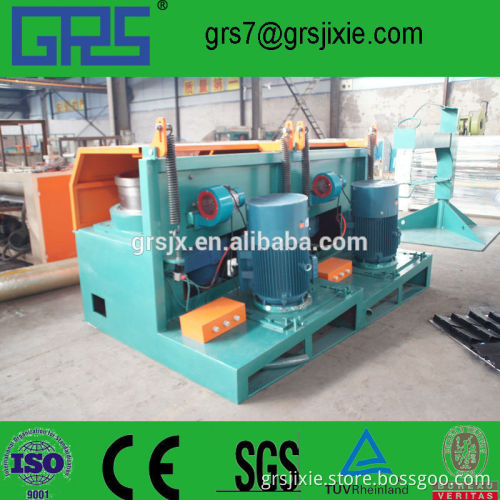

Fully Automatic Straight Line Wire Drawing Machine with High Drawing Speed

Specifications used to draw various kinds of steel wires, welding wires, etc

high drawing speed and efficiency, low noise

easy to operate

fully automatic straight line wire drawing machine Application: kinds varioushis device is uesd to draw vrious kinds of steel wire, welding wire and other metal wire materials.   Specification:

Times of drawing	Drum dia	Max inlet dia	Min outlet dia	Speed	Single power	Input strength
2-11	300mm	2.8mm	0.5mm	25m/s	7.5-18.5KW	≤1250MPA
2-11	350mm	3.5mm	0.6mm	20m/s	11-12 KW
2-11	400mm	4.2mm	0.75mm	20m/s	11-30 KW
2-12	450mm	5mm	1mm	16m/s	15-37 KW
2-12	500mm	5.5mm	1.2mm	15m/s	22-45 KW
2-12	560mm	6.5mm	1.4mm	15m/s	22-55KW
2-12	600mm	8mm	1.6mm	12m/s	30-75KW
2-9	700mm	10mm	2.2mm	12m/s	45-90KW
2-9	800mm	12.7mm	2.6mm	8m/s	55-110KW

  Structure: The equipment consists of main reduction box,die casing,wheel frame,sash brace and electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.   Pictures:   Welcome to visit our factory   Contact person: Ms. Sophie Mobile: +86-15931138656, +86-15373801631 Skype: xuefei8648 Trademanager id: cn1510577823, cn1001780557
