2014 high speed ,low noise Wire Drawing Machine specialized for copper wire

Specifications Copper Wire Drawing Machine

fast die change system

high efficiency

low noise nicely balance durable

environmental

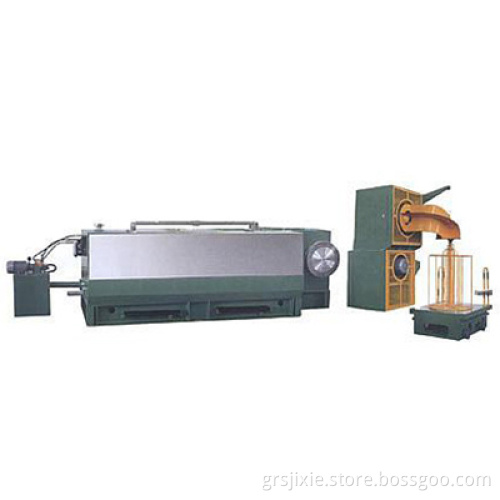

        Copper Wire Wire Drawing Machine                                                          Application :      this type water-tank wire drawing machine specialised for 3.0-0.5mm copper wires drawing easy and safe to operate with high efficiency low noise and environmental freindly.
Specification :

Data	LT2-17/280	LT1-11/350	LT1-9/450	LT1-9/560
Drum dia mm	280	350	450	560
Number of mould	17	11	9	9
Inlet dia mm	2.5-2.0	2.8-2.5	3.4-3.0	4.7
Outlet dia mm	0.9-0.45	1.4-1.2	1.8-1.6	1.6
Speed m/min	500-650	160-350	160-300	280-300
Motor KW	22-30	30-45	37-45	110

  Besides,our factory can produce common and luxurious pulley type wire drawing machine for iron copper,aluminium wire drawing.       Common pulley type wire drawing machine   (max inlet di 6.5mm and min outlet dia mm3.0)           Luxurious model pulley type wire drawing machine       ( electrical control easy and safe to operate high efficiency low noise       suitable for high, medium,low-carbon stell ,copper,aluminum wire drawing.)                 LT straight line wire drawing machine   (max inlet dia12.7mm min outlet dia0.5mm)                                                   Want to know more welcome to our factory!         Ms.Lynn Li    TEL:+86-311-85965533   Mobile: +86-15633846726   Skype:lvjoejx.lynn
