seasoning timber drying

Specifications seasoning timber drying

1.High outturn percentage

2.Environmental protection

3.Flexible and simple

4.save cost and time

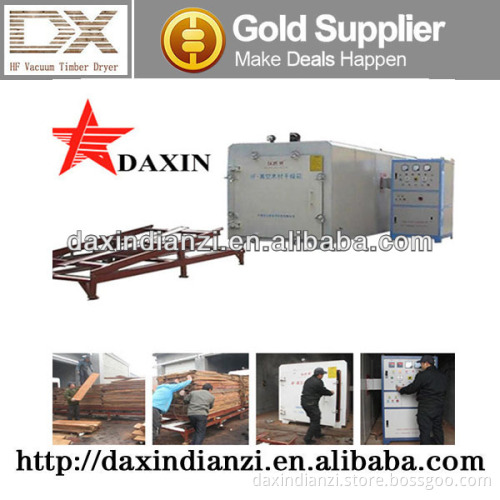

seasoning timber drying         High vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.   High frequency generator heating principle
HF generator is the core of dielectric heating equipment. It applies three phase alternating current to form frequency oscillation electric field .Under this high frequency electric field, the molecules like water .glue or PVC will be polarized and form two poles. The electric field will change pole rapidly meanwhile all the molecules will also move in very high speed. The friction and impact among molecules can make material get heated in short time. Then the water will be vaporized, glue becomes solid and PVC gets softened rapidly.     The drying principle High vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood. Automatic type function Adopts optical fiber testing temperature, accuracy, it is effectively avoid High frequency interfering measuring instrument. It adopts weight method and Kiln moisture meter, which can test moisture rate online The container is handled by professional chemical anticorrosion, no rustiness, so that save the container maintenance and avoid pollute the timber Save labor, automatic feeding and discharging. Built-in cooling system, lower the drying cost     Advantages     Why we choose HIGH FREQUENCY VACUUM?

	High frequency vacuum	Microwave vacuum
Heating method	High frequency	microwave
Heating speed	Fast	fast
Diathermy way	through heating	The internal and external heating
Heating area	uniformity	Outside high, inside low temperature
Technology process	Easy	complex
Drying temperature	Can be high to low	high
Drying quality	Perfect	Maybe some damage
Radiation	Low	high
comprehensive evaluation	Excellent	good

More specifications

Model	GZ-3.0III-DX	GZ-4.0III-DX	GZ-6.0III-DX	GZ-8.0III-DX	GZ-10.0III-DX	GZ-12.0III-DX
Capacity (CBM)	3.3	4.4	6.6	8.64	10.08	12.48
Out Dimension (mm)	L4400 W1716 H1806	L5400 W1716 H1806	L6500 W1916 H2006	L7600 W2000 L2090	L8600 W2000 H2090	L9600 W2000 H2090
Inside dimension (mm)	L3600 W1500 H1500	L4600 W1500 H1500	L5700 W1700 H1700	L6800 W1750 H1750	L7800 W1750 W1750	L8800 W1750 H1750
Timber cart (mm)	L3000 W1100 H1000	L4000 W1000 H1000	L5000 W1200 H1000	L6000 W1200 H1200	L7000 W1200 H1200	L8000 W1300 H1200
Max Length of Wood	3m	4m	5m	6m	7m	8m
High Frequency	6.78MHz
Input Power	15KW	15KW	30KW	40KW	50KW	50KW
output power	10KW	10KW	20KW	30KW	40KW	40KW
Vacuum pressure	- 0.093MPa
Weight(kg)	4000	5000	7000	9000	11000	13000
Packing	20GP	40GP	40HQ	40HQ	40HQ	40HQ
Kiln Temp	Vacuum kiln Drying temperature: ≤90°C
Moisture	From 90% to 6% ,could be setting as per-request
Drying time	2-7 days
Application	Apply for all hardwood species
