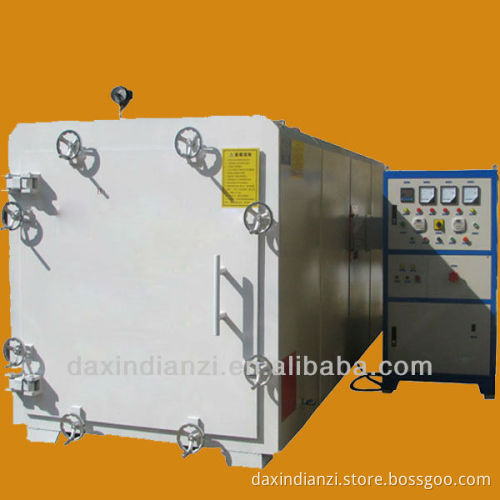

HF Vacuum Wood Dryer smart hf wood drying machine

  Product Description HF Vacuum Wood Dryer smart hf wood drying machine   1.It is new drying method. (Dielectric heating) Steam and normal vacuum dryer (hot plate) is conductive heating. They dry the wood little by little from outside to inside. High frequency is dielectric heating. HF wave can penetrate the thick wood and dry it uniformly. Even the core of wood temperature is heater than surface. Vacuum condition: It is minus pressure, safe. The wood moisture can vaporized in low temperature. Then vapor will be pump out automatically. So HF vacuum dryer is faster, more uniform, no bending and no crack caused by non-uniform. 2. No need boiler; No need hot plate (no hot water) The power supply of HF vacuum dryer is electricity. It does not need boiler, save the human resource and protect the Environment. 3. Worm killing. High frequency can kill the worm and bacteria. It does not need special chemical treatment. Package: Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea

Model	GZ-3.0III-DX	GZ-4.0III-DX	GZ-6.0III-DX	GZ-8.0III-DX	GZ-10.0III-DX
Capacity(CBM)	3.3	4.4	6	8	10.8
Out Dimension	4330*1716 *1806mm	5330*1716 *1806mm	6465*1916 *2006mm	7605*2016 *2006mm	7500*2140 *2240mm
Inside dimension	3600*1500 *1500mm	4600*1500*1500mm	5600*1700 *1700mm	6600*1700 *1700mm	6600*1900 *1900mm
Timber cart (mm)	3000*1100 *1000	4000*1000*1000	5000*1200 *1000	6000*1300 *1100	6000*1500 *1100
Max Length of Wood	3m	4m	5m	6m	6m
High Frequency	6.78MHz	6.78MHz	6.78MHz	6.78MHz	6.78MHz
Input Power	11KW	11KW	30KW	40KW	50KW
output power	10KW	10KW	20KW	30KW	40KW
Vacuum pressure	- 0.092MPa	- 0.092MPa	- 0.092MPa	- 0.092MPa	- 0.092MPa
Weight(kg)	4000	5000	7000	8500	9500
Application	Apply for all wood species
