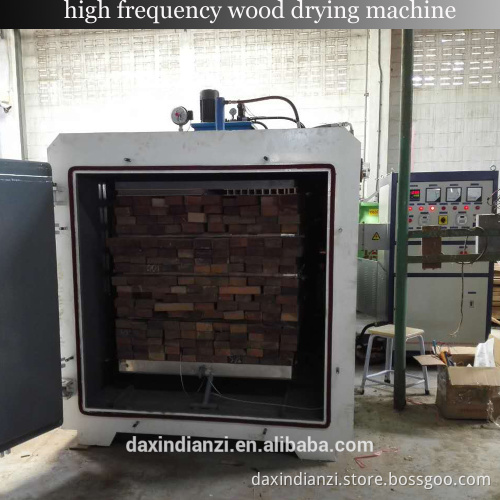

DX-10.0lll-DX Timber Wood Board Drying Used Machines For Furuniture Material

                Furuniture Timber drying used machine                       1) HIGH FREQUENCY GENERATOR   1. Power: ~480 50HZ Three-phase four-wire system   2. Input power: 50KVA   3. Power adjustment: manual Five grade power to adjustable   4. Filament voltage: 10V   5. Electronic tube: FU924   6. Central oscillation frequency: 6.78 MHZ   7. Oscillation power: 40 KW   8 .Overall efficiency: under a good match state ≥50%   9. Load form: flat capacitance   10. Output adjustment mode: manual vacuum variable capacitive                      11. Output form: unilateral output   12. Safety protection: high pressure over current protection,main transformer overload protection, loop short  circuit and spark protection   13. Range of application: board jointing,wood bending,wood floor,integrated timber,science and technology  wood ,wood drying etc   14. Technical conditions: GB5959·1-86 GB5959·9-86 GB/T10067·5-93 prescribed technical conditions   15. Electromagnetic radiation and protection: GB8702-88 standard   16. Work environment: humidity≤85% temperature+10~35°C   17. Equipment Size: L1050mm×W1450mm×H1700mm   Weight: 550 KGS   18. Note: Keep high frequency generator away from dust environment, flammable, explosive & corrosive gases, and sources of quake and impact.     2) VACUUM WOODDRYING OVEN   1. Efficient volume of vacuum dryer: 10 M3   2. Timber cart: 6.0 M long, 1.5M wide   3. Outer orbit: 5.5 M long   4.Pile height :0.5~1.1M   5.Vacuum degree: 0~-0.093MPa   6. Vacuum pump power: 4KW   7. Circle pump parameter: input power: 370W flow: 3 cubic per hour   8. Initial moisture content of wood requirement: less than 30%   9. Maximum dehydration rate: 310 KGS /24hour (condition: density of wood 0.75, output power 40KW,  temperature of condenser:30°C, vacuum degree— 0.08MPa)   10. Temperature check: main and deputy even numbers show temperature display, can meet the specials  need of wood drying technology.                    11. Safety protection: vacuum pump overloads protection   12. Drainage control: automatic/ manual   13. Temperature control: manual set, automatic operation   14. Vacuum degree control: manual set, automatic operation   15. Main control valve: pneumatic   16. Material pile of pressure device: hydraulic or pneumatic   17. Pressure device is maximum pressure: 9500KG       Why do we choose hf wood kiln dryer ?      Get more information              6CBM Machine           8CBM Machine     10CBM Machine         12CBM Machine   Contact person:Ellen Liu   Tel:+86-13722980382   Skype: vhaibo9            Working flow         Certification:         Warranty: 1 year for the whole machine. After-sale service: Engineers available to service machinery overseas.  If there were some parts broken by itself, we can supply the parts freely within 1 year. Packing & Shipping   As usually we adpot standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea!  we can also packing the machine according to your requires .     All of our staffs warmly welcome  you to visit our factory and we sincerely hope we can establish bussiness relationship with you !  If you have any interests about our machines , please feel free to contact with me in any time ! I am looking forward to communicate with you enjoyably!    Ellen Liu
