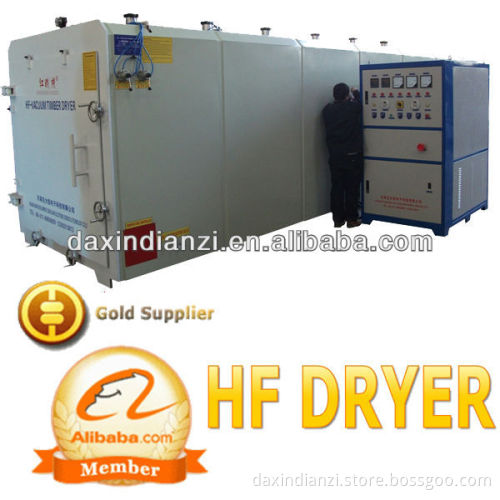

Pine high frequency wood dryer

Specifications Wood chip machine

1.Dryer oven: 3-10 m3

2.Generator:10-50KW

  Pine high frequency wood dryer     Shijiazhuang Development Zone Daxin Electronic Science And Technology Co., Ltd. is a professional firm specialized in the production of High-frequency Medium Heating Equipment, which is widely used in the areas of furniture, wood drying, Integrated Wood, scientific wood and bent wood. In 2003, our firm successfully passed ISO9001 certification, which has greatly improved the general management level.       Technology data for squared vacuum wood dryer oven when working (10 cubic meters):

Main Date of High frequency vacuum timber dryer machine
Model:	GZ-10.0III-DX
Power:	~ 380 50HZ Three-phase four-wire system
Type of work:	high-frequency heating, vacuum dehydration
External size(m):	7.6(L)×2.1(W)×2.2(H)
Inner size(m):	6(L)×1.5(W)×1.1(H)
Input power:	50 (Kw)
Outpower	40(Kw)
Weight:	9500(Kg)
Working vacuum:	0~-0.09MPa
Heating mode:	dielectric type
Applicable materials:	all kinds of wood
Temperature range:	depending on the technology needs
Dry medium mobile:	direct heat
Applicable field:	wood drying
Water evaporation capacity:	310 KG / 24 hours (conditions: high frequency power 40 KW, vacuum degree:-0.08MPa, condensing temperature: 30 centigrade)

      Vacuum wood dryer oven Sizes: 3/4/6/8/10 cubic meter or larger  ones

Tape	Effective capacity	Power of high frequency	Maximum effective capacity	Applicable materail	Notes
GZ-3.0III-DX	3.3m3	10KW	3.0m(L)*1.1m(W)* 0.5m~1.0m(H)	All kinds of wood,  especial hard wood.   E.g.: wood, timber,  lumber, timbering,  lignum	a.High speed: much more quicker than  the common machine   b.Full-automatic
GZ-4.0III-DX	4.4m3	10KW	4.0m(L)*1.1m(W)* 0.5m~1.0m(H)
GZ-6.0III-DX	6.0m3	20KW	5.0m(L)*1.2m(W)* 0.5m~1.0m(H)
GZ-8.0III-DX	8.0m3	30KW	6.0m(L)*1.3m(W)* 0.5m~1.1m(H)
GZ-10.0III-DX	10.0m3	40KW	6.0m(L)*1.5m(W)* 0.5m~1.1m(H)

        High frequency generator   The data of different High Frequency Generators:

Model Item GJJ06- 6A GJJ06- 6A GJJ06- 6A GJJ06- 6A GJJ06- 6A GJJ06- 6A Supply voltage 380V Input power 10KVA 16KVA 25KVA 30KVA 40KVA 50KVA Oscillation power 6KW 10KW 15KW 20KW 25KW 30KW Oscillation frequency 6.78MHz Rectifier Three-phase bridge silicon rectifier Overall dimensions 1000mm(L)*900mm(W)*1700mm(H) Net weight 280KG 350KG 450KG 500KG 550KG 600KG     The squared vacuum wood oven can meet more lower high frequency generator to save cost!   The advantages of the DXHF-vacuum wood dryer:       Cart for wood     Outer orbit    Aluminum net      More pictures   Finished wood:               To dry perfect wood!   Welcome to understand more about our squared wood dryer machine!   Send your message to this supplier * From: * To: Ms. Semele An * Messages: Enter between 20 to 4,000 characters. Related Products wood dryer machine uniform heating,no cracking,fast drying HF vacuum dryer Woodworking Machinery, HF Vacuum Wood Dry Kiln( Model No.GZ-6.0II-DX) Wood Dryer New Design High frequency and Vaccum High frequency Vacuum Timber Dryer machine for all wood species Related Keywords Related Keywords hf wood dryer machine , wood dryer machine hf wood dryer machine , wood dryer machine You May Also Like You May Also Like wood dryer machine uniform heating,no cracking,fast drying HF vacuum dryer Woodworking Machinery, HF Vacuum Wood Dry Kiln( Model No.GZ-6.0II-DX) Wood Dryer New Design High frequency and Vaccum High frequency Vacuum Timber Dryer machine for all wood species High frequency vacuum Lumber drying machines from Alibaba Related Products High frequency power supply and wood Vacuum plant HF vacuum wood dryer kiln HF Vacuum Drying Furnace, Used for Drying All Kinds of Wood professional manufacture of vacuum dryer for wood Compact Structure Timber Drying Kiln Of Authentic Quality Product Categories HF Wood veneer dryer(9) HF vacuum dryer 12CBM(32) HF vacuum dryer 10CBM(31) HF vacuum dryer 8CBM(32) HF vacuum dryer 6CBM(32) HF vacuum dryer 4CBM(31) HF vacuum dryer 3CBM(32) High frequency vacuum dryer(32) High frequency generator(7) Other(257) HF vacuum dryer 12CBM(32) HF vacuum dryer 10CBM(31) HF vacuum dryer 8CBM(32) HF vacuum dryer 6CBM(31) HF vacuum dryer 4CBM(30) HF vacuum dryer 3CBM(28) High Frequency Vacuum dryer(9) High Frequency generator(25) DRYER MACHINE(14) Other(25) HF Board Jointing Machine(24) HF Joint Frame Machine(15) HF Press Machine(4)
