Competitive Price Wood Seasoning Dryer Of Best Quality

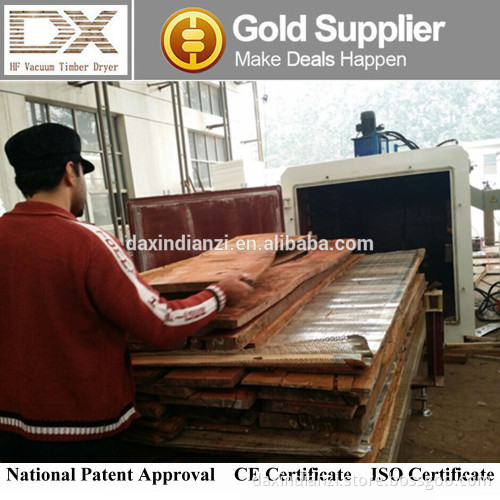

DXHFWOODWORKINGMACHINERY——HIGH FREQUENCY VACUUMWOOD  DRYING MACHINE 3M3Main technology parameters 1.Equipment composition: High frequency generator, vacuum oven, timber cart, external track (outer orbit), aluminum mesh Counter  Electrode 2. high-frequency machine main parameter Powder:~380 50HZ Three-phase four-wire system Input powder: 11KVA Power adjustment: manual operation five gears adjustable power Cathode voltage:12.6V Electronic valve: xxx Oscillation central frequency:6.7MHZ Oscillation power:≤10KW Overall efficiency: fine condition ≥50% Load form: plate capacitance Output adjustment method: Manual vacuum variable capacitance Output form: single output Safeguard: High-voltage over-current protection, the main transformer overload protection Applicability: dry for wood such as jointing, bentwood, timber floor, laminated wood, technical wood Other technological conditions: according with GB5959•1-86 GB5959•9-86 GB/T10067•5-93 prescribed technical conditions Electromagnetic radiation and protection: according with GB8702-88 standards Working environment: humidity≤85%   temperature +10~35°C Size of equipment:950×1050×1750 Others: working place can’t have dust corrosive gas, Flammable explosive substance away from vibration  percussive equipment 2. Vacuum tank parameter Effective capacity: 3M3 Timber cart: length 3.0M   width 1.1M Outer orbital: length 2.5M Height of timber: 0.5~1.0M Vacuum: 0 ~ -0.093Mpa                                                           Vacuum pump power: 2.2KW Circulating pump parameters Input powder: 370W   flow: 3 M3/h Initial moisture content: <30% Maximum dehydration rate: 90KGS/24h (condition: 0.75 density of wood, -0.08 Vacuum, condensing board  temperature 30°C, hunting power 10 KW) Safeguard: Vacuum overload protection

Specification	HF machine power	Effective volume	Wood species	Wood maximum length	Shape dimension (mm)	Inner space (mm)	Timber cart (mm)
GZ-3.0 II-DX	10KW	3.3m³	All wood	3M	4330 *1716 *1806	3600 *1500 *1500	3000 1100 1000
GZ-4.0 II-DX	10KW	4.4m³		4M	5330 *1716 *1806	4600 *1500 *1500	4000 1100 1000
GZ-6.0 II-DX	20KW	6m³		5M	6465 *1916 *2006	5600 *1700 *1700	5000 1200 1000
GZ-8.0 II-DX	30KW	7.8m³		6M	7605 *2016 *2006	6600 *1700 *1700	6000 1200 1100
GZ-10.0 II-DX	50KW	10.8m³			7500 2140 2240	6600 *1900 *1900	6000 1500 1200
