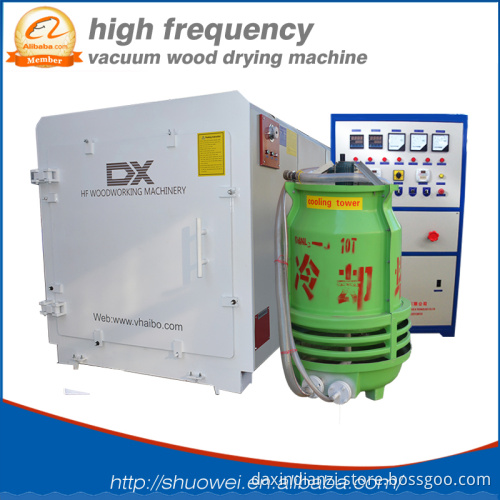

High Frequency Kiln Dryer For Wood / Funiture

Product Description Kiln Dryer/Vacuum Wood Dryer/High Frequency
High frequency vacuum wood drying kiln is a new generation wood drying equipment.
This machine is the result of design combining high frequency medium heating technology and vacuum cryogenic dehydration technology, greatly reduced drying time.

1. To dry all kinds of wood in board or column type, slab type, cant type, timber type etc..
2. To dry all kinds of wood in veneer type.
3. To dry all kinds of wood in bending type.
1.It is new drying method. (Dielectric heating)
Steam and normal vacuum dryer (hot plate) is conductive heating. They dry the wood little by little from outside to inside.
High frequency is dielectric heating. HF wave can penetrate the thick wood and dry it uniformly. Even the core of wood temperature is heater than surface.
Vacuum condition: It is minus pressure, safe.
The wood moisture can vaporized in low temperature.
Then vapor will be pump out automatically. So HF vacuum dryer is faster, more uniform, no bending and no crack caused by non-uniform.

2. No need boiler; No need hot plate (no hot water)
The power supply of HF vacuum dryer is electricity. It does not need boiler, save the human resource and protect the Environment.

3. Worm killing.
High frequency can kill the worm and bacteria. It does not need special chemical treatment.

4. Applications of DXHF vacuum dryer
Normal solid wood;
Rose wood,hard wood, verawood,red sandalwood, large square beams etc.;
Thin plane cutting board,peeling veneer floor
5. Advantages of High frequency vacuum wood dryer
1)Heating fast and uniformly, fast drying(:more than10 times faster than conventional steam dryer);
2)Saving labor, cost and drying time;
3)Full-automatic, easy to control and operate; flexible and simple;
4)High outturn percentage, no crack, no deformation;
5)Environmental protection;
6)New square design tank increase the availability of the inner space;
7)Bacteria and worm killing, high outturn percentage ;
8)Drying apply for all kinds of wood

Specifications of high frequency vacuum wood dryer machine GZ6.0
Model size	GZ-6.0  high frequency vacuum wood dryer machine
Effective capacity	6.6 cbm
Outside dimension	6500*1916*2006 mm
Inside dimension	5700*1700*1700 mm
Timber cart	6000*1200*1200 mm
Max length of wood	5 m
High frequency	6.78 MHz
Iuput power	30 KVA
Output power	20 KW
Vacuum pressure	-0.093 MPa
Weight	7000 kgs

Detailed Images Machine Parts Name:  High frequency generator  This is the core parts of the machine ,all procedures and main technology are inside ,including PLC ,electric valve etc.
Main Features Name: Cooling tower
This part mainly used in hot weather ,the main usage is to cool the internal temperature,guarantee the drying speed and quality .
Machine Parts Name: Timber cart
We have both full-auto mode and manual feeding model for your choose as your requests. Main Features Name: Stainless condenser
Inside glass fiber reinforced plastics, avoid the corrosion from the drying mositure of timber . Machine parts Name: Pressure system We have both hydraulic and pneumatic ,that means common oil system and air pressure system ,thay are to prevent the wood bocoming bend and crack . Main features Name: Perforated aluminum plate and wooded bar These 2 parts are to seperate wood to dissipating heat quickly ,guarantee the drying speed. Packing & Delivery Our Service Pre-Sales Service * Inquiry and consulting support.  * Drying result testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Warrenty: all kinds of machines can be ensured 1 year.
Customer service: If there were something wrong during this warrenty, our engineer would be available to oversea to repair it freely.
