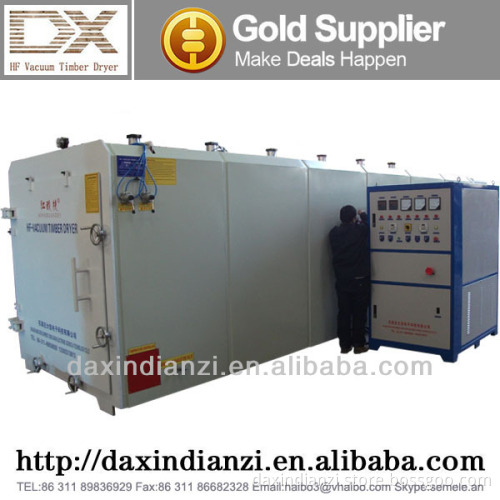

High frequency vacuum Lumber drying machines from Alibaba

Specifications High frequency vacuum Lumber drying machine

1.It is new drying method. (Dielectric heating)

2.No need boiler; No need hot plat

 High frequency vacuum Lumber drying machine   1. It is new drying method. (Dielectric heating) Steam and normal vacuum dryer (hot plate) is conductive heating. They dry the wood little by little from outside to inside. High frequency is dielectric heating. HF wave can penetrate the thick wood and dry it uniformly. Even the core of wood temperature is heater than surface. Vacuum condition: It is minus pressure, safe. The wood moisture can vaporized in low temperature. Then vapor will be pump out automatically. So HF vacuum dryer is faster, more uniform, no bending and no crack caused by non-uniform.   2. No need boiler; No need hot plate (no hot water) The power supply of HF vacuum dryer is electricity. It does not need boiler, save the human resource and protect the Environment.   3. Worm killing. High frequency can kill the worm and bacteria. It does not need special chemical treatment. Package: Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea

Specification	HF machine power	Effective volume	Wood species	Wood maximum length	Shape dimension (mm)	Inner space (mm)	Timber cart (mm)
GZ-3.0 III-DX Learn more	10KW	3.3m³	All wood	3M	4330 *1716 *1806	3600 *1500 *1500	3000 1100 1000
GZ-4.0 III-DX Learn more	10KW	4.4m³		4M	5330 *1716 *1806	4600 *1500 *1500	4000 1100 1000
GZ-6.0 III-DX Learn more	20KW	6m³		5M	6465 *1916 *2006	5600 *1700 *1700	5000 1200 1000
GZ-8.0 III-DX Learn more	30KW	7.8m³		6M	7605 *2016 *2006	6600 *1700 *1700	6000 1200 1100
GZ-10.0III-DX Learn more	40KW	10.8m³		7M	7500 2140 2240	6600 *1900 *1900	6000 1500 1200

    Contact person:Joanna Xie Tel:+86-0311-89836929 Skype:joanna.xie01
