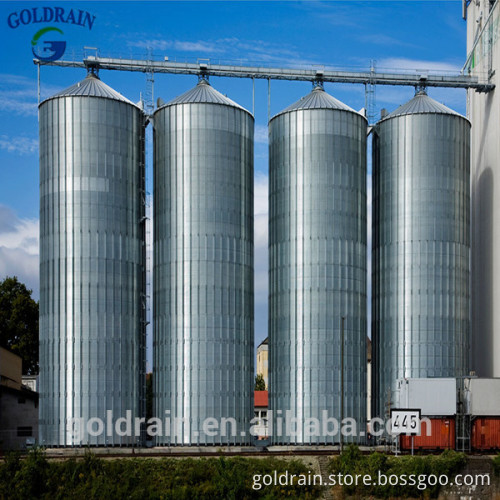

Different capacity volume galvanized steel storage silo used maize
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Hebei, China (Mainland) |
|---|
Product Description
Product Description
Specifications 1.storage silo used maize
2 Customized design
3 Advanced heat preservation technology
4 Fast installati
storage silo used maize
About us ?
Shijiazhuang Goldrain I/E Co.,Ltd. is a professional manufacturer of storage silo. The whole related eqipment machine can be offer: cleaning system, conveying system, drying system, temperature control system, ventilation system, material-level system and electric system and another.
We offer:
1.Grain silo
2.Hot-galvanized steel silo
3.Overseas after-sale service
4.Turnkey project,we will dispatch engineers for installation. Silo body The assembly silo is made of high quality hot galvanized steel plates which are rolled into corrugation and made into standard connection holes. These plates are connected by high strength screw bolts. The silo plates' thickness distribution is set according to equal strength theory which makes the silo plates bear average stress. The vertical friction is supported by the stiffeners. Silo top The silo top adopts umbrella frame and the frame material is made of C model straight carbon steel. The ceiling is made of galvanized steel tile There are two kinds of silo: flat bottom silo and hopper bottom silo
Installation of silo Suitable for all kinds of grain and bulk solid material Who we are ? Shijiazhuang Goldrain I/E Company Ltd is a professional company in the import and export machinery, especially in silo. What we do ? Our business scope covers the silo, grain silo,hot galvanized steel silo, conical silo, flat bottom silo, steel grain silos etc . How we do ? Customers' requirements-------Design-----Produce------Shipping----- Installation----Test and train your workers. We can make turnkey project to save you time and investment. We insist on the idea of "Quality First, Credibility Oriented, Service Highest" to take the leading position in the field
1. What is the types of this assembly silo? A. Hopper bottom: Steel cone base: The capacity is below 800t and the diameter is below 8.5m. B. Cement cone base / Flat bottom: The capacity is comparatively big and the diameter is below 12m, its base is general made into cement cone base. 2. what is the zinc coating per sqm available ? The silo is made of hot-galvanized steel sheet 275g/m2,350 g/m2 and 400g/m2 are options. 3. What is the usage of the fabricated silo ? The steel silos are widely used in grain storage, animal feed, flour, starch, rice milling factory, grease processing, brewing, monosodium glutamate etc. Home
2 Customized design
3 Advanced heat preservation technology
4 Fast installati
storage silo used maize
| storage silo used maize |
Shijiazhuang Goldrain I/E Co.,Ltd. is a professional manufacturer of storage silo. The whole related eqipment machine can be offer: cleaning system, conveying system, drying system, temperature control system, ventilation system, material-level system and electric system and another.
We offer:
1.Grain silo
2.Hot-galvanized steel silo
3.Overseas after-sale service
4.Turnkey project,we will dispatch engineers for installation. Silo body The assembly silo is made of high quality hot galvanized steel plates which are rolled into corrugation and made into standard connection holes. These plates are connected by high strength screw bolts. The silo plates' thickness distribution is set according to equal strength theory which makes the silo plates bear average stress. The vertical friction is supported by the stiffeners. Silo top The silo top adopts umbrella frame and the frame material is made of C model straight carbon steel. The ceiling is made of galvanized steel tile There are two kinds of silo: flat bottom silo and hopper bottom silo
Silo type | Hopper bottom silo | Flat bottom silo | |
Bottom Cone Degree | 45°degree | 60°degree |
|
Diameter | 1.8m-11m | 1.8m-7.334m | 3.6m-20.1m |
Capacity | 5.4t-1428t | 5.8t-755t | 30t-10682t |
Volume | 7.2m³-1855m³ | 8.4m³-701m³ | 39m³-13873m³ |
| Contact Person: | Candy Liu |
| Skype: | goldrainc |
| Telephone: | 0086-311-68008837 |
| Mobilephone: | 0086-18131189696 |
| Fax: | 0086-311-68008978 |
| Address: | Army Ganxiu House, No.41 Shizhuang Road, Shijiazhuang City, Hebei Province, China |
| Zip Code: | 050000 |
1. What is the types of this assembly silo? A. Hopper bottom: Steel cone base: The capacity is below 800t and the diameter is below 8.5m. B. Cement cone base / Flat bottom: The capacity is comparatively big and the diameter is below 12m, its base is general made into cement cone base. 2. what is the zinc coating per sqm available ? The silo is made of hot-galvanized steel sheet 275g/m2,350 g/m2 and 400g/m2 are options. 3. What is the usage of the fabricated silo ? The steel silos are widely used in grain storage, animal feed, flour, starch, rice milling factory, grease processing, brewing, monosodium glutamate etc. Home
