slope protection fence(anchuang)

Specifications SNS soft protect fence

SNS protective mesh,SNS fence

ISO9001:2000,SGS

overcomes the inconvenience of reinforce slopes

Supply High Quality Slope Protection Fence   1. Specifications of High Quality Slope Protection Fence   (1) Wire Diameter: 2.0mm-4.0mm (2) open: 300x300mm or other specifications as customer request
(3) Wire rope: 8mm,10mm,11mm...(6*19IWS or other constructions)
(4) panel size: 4mx4m (5) Material: hot-dipped galvanized wire with knots; (6)Detailed Sizes:

spec. of wire mesh		max. twistable wire diameter		max. mesh width
mesh no	mesh size	galv.wire	pvc covered wire	-
2-1/2"	60x80 mm	BWG12 (2.80mm)	4.0mm	3200 mm
3"	80x100 mm	BWG11 (3.00mm)	4.0mm	4000 mm
4"	100x120mm	BWG11 (3.00mm)	4.0mm	4000 mm

  2.Features:
(1).Hexagonal mesh pattern critical points
(2).Double twist to avoid unraveling
(3).Reinforcing wires woven into corners to reinforce critical points
(4).A diaphragm securely attached at the base that will prevent the shifting of some and reinforce the gabion   3.Types of High Quality Slope Protection Fence:   (1) Active Protection fence: @1, Definition: Active Protection Active Protection System is based on the main types of flexible wire rope mesh covering wrapped required protection on the slopes or rock, to limit flaking or destruction of the slope rock weathering of the soil as well as the collapse of the rock (reinforcement effect), or The rockfall controlled movement (envelope function) within a certain range.
  @2, Structure: The first two by the wire rope anchor and / or support rope fixed, the latter reinforced (can be prestressed) and / or the wire rope anchor (with edge support rope used), dedicated anchor plate and, if necessary, edge support rope fixed way.     @3, Product Features:
1.Has a high flexibility, high protective strength, easy spreadability. Adapt to any slope terrain, the installer standardized and systematic.
2.The system uses a die-cutting installation, short construction period, low construction costs.
3.System special materials manufacturing processes and high corrosion and rust, the ultra-high life expectancy of the system. Environmental impact of the system engineering team can be reduced to the lowest point, soil, rock solid protection area can be adequately protected to facilitate artificial greenery, is conducive to environmental protection.
4.Similar to the role of the principle of spray anchor and soil nail wall surface layer slope protection system, but because of its flexible features enable the system will be partially concentrated load surrounded Material: wire rope, ordinary steel wire mesh (often called wire grille) uniform and the TECCO high strength steel wire mesh to pass in order to give full play to the ability of the entire system of protection, namely local overload, the overall effect, so that the system can withstand greater loads and lower single bolt anchoring force requirements.   (2) Passive Protection Fence: @1, Definition: Passive protection by wire rope ring network (need to intercept small piece of rockfall additional layer of wire grille), fixed ring system (anchor, anchor rope, dock and support rope) decompression and steel columns four main portions. Steel columns and steel wire rope net connection combine to form a whole, forming surface protection for the protection of the area, thereby preventing the collapse of the fall of the rocky soil, and play a role in slope protection.

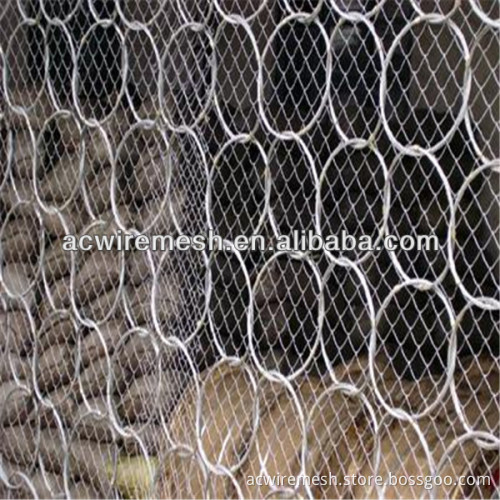

  @2, Construction: Additional layer of wire grille (need to intercept small piece of falling rock by the wire rope or ring network), fixed system (anchor, Elam anchor rope, dock and support rope), vacuum the four main sections of the ring and steel columns constitute   @3, Product features: The flexibility of the system and interception strength sufficient to absorb and dispersed rockfall impact kinetic energy transfer expected impact the ability of the energy dissipation loop design and make the system will be further improved as compared with the rigid of interception and puzzle syrup Retaining Wall, changing the original construction process, reduce the duration and funding.   @4, Usage: Apply in the high ranges of the buffer zone next to the building facilities, rock falls, flying rocks, avalanches, mudslides blocking construction facilities, avoid disasters, the destruction of buildings and facilities   4. Pictures of High Quality Slope Protection Fence:
