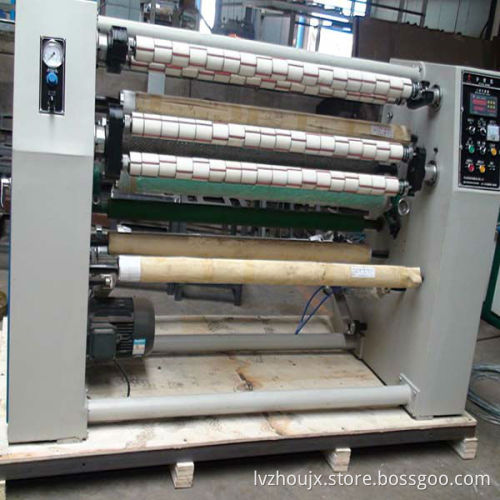

jumboo roll cutting and rewinding machine

Specifications log cutter use 1300 type cutting machine

                                                       adhesive tape cutting machine   Feature 1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. 2. Stepless speed regulation of frequency conversion and three-step length setting provide smooth rewinding operation to ensure accurate rewinding length. It can automatically decelerate and stall when operating at high speed. 3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.   Usage: Used for slitting BOPP, adhesive tape, as well as other incoherent products.       Reference:

Efficient width (mm)	1300
max unwinding diameter (mm)	600
max rewinding diameter (mm)	4shafts 76.2-150  2shafts 76.2-300
mini cutting width (mm)	12
cutting inside diameter of paper tube (mm)	76
speed of machine (M/min)	0-180
size (L,W,H)mm	1960×1500×1340
machine motor(HP)	5
