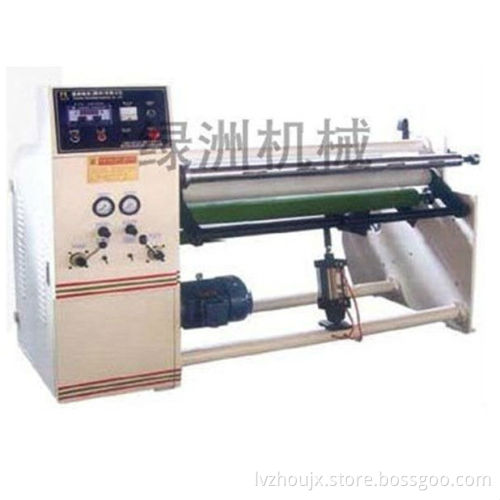

Automatic Adhesive Tape Winding Machine
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Hebei, China (Mainland) |
|---|
Product Description
Product Description
Specifications Automatic Adhesive Tape Winding Machine can rewind bad tape
Automatic Adhesive Tape Winding Machine Application: This cutting machine is also suitable for foam tape, electrical tape, duct tape, foil tape, double sided tape, masking tape, cloth tape, fabric tape, pvc tape, opp tape, pe tape, pet tape, kraft paper tape, cellophane tape etc Feature: 1. Automatic length setting: the two-step length counter provides accurate rewinding length control. Once the set length is reached, servo motor is adopted so that the shaft will instantly and automatically changes, ensuring easy operation and efficient performance. 2. Programmable controller: the high performance programmable controller offers convenient control of the entire rewinding operation. Both length and tension are accurately displayed by LED readout. 3. The paper core is held firmly on the pneumatic shaft. With easy, fast loading and unloading, it greatly improves efficiency. 4. Automatic smoothing device (optional): this wipe down device fully eliminates the problem of wrinkling and air bubbles in the product after rewinding. This device further ensures the smoothness of product. 5. Oil pressure material loading device (optional): this device offers easy material loading for operational convenience and improves efficiency. 6. The pressing roller is controlled by the cylinder and the pressure is adjustable. The semi-finished products are properly pressed to ensure smooth, stable running during rewinding. 7. Main driving part: Taiwan AC motor with inverter is employed. Main Technical Parameters
double shaft cutting machine
tape rewinding machine
Automatic Adhesive Tape Winding Machine Application: This cutting machine is also suitable for foam tape, electrical tape, duct tape, foil tape, double sided tape, masking tape, cloth tape, fabric tape, pvc tape, opp tape, pe tape, pet tape, kraft paper tape, cellophane tape etc Feature: 1. Automatic length setting: the two-step length counter provides accurate rewinding length control. Once the set length is reached, servo motor is adopted so that the shaft will instantly and automatically changes, ensuring easy operation and efficient performance. 2. Programmable controller: the high performance programmable controller offers convenient control of the entire rewinding operation. Both length and tension are accurately displayed by LED readout. 3. The paper core is held firmly on the pneumatic shaft. With easy, fast loading and unloading, it greatly improves efficiency. 4. Automatic smoothing device (optional): this wipe down device fully eliminates the problem of wrinkling and air bubbles in the product after rewinding. This device further ensures the smoothness of product. 5. Oil pressure material loading device (optional): this device offers easy material loading for operational convenience and improves efficiency. 6. The pressing roller is controlled by the cylinder and the pressure is adjustable. The semi-finished products are properly pressed to ensure smooth, stable running during rewinding. 7. Main driving part: Taiwan AC motor with inverter is employed. Main Technical Parameters
machine width | 1.3M/1.6M |
rewind width | 1000-1650mm |
max. unwind diameter | 1000mm |
max. rewind diameter | 200mm |
max. rewind speed | 180M/min |
I.D. of paper core | 76.2mm |
main motor | 5 HP×2 |
air pressure | 6 Bar |
tape rewinding machine
