log roll slitter cutting machine

Specifications medical tape slitting rewinding machine can slit many kinds of tapes.

                                                       slitting rewinding machine Usage: This kind rewinding machine is also Suitable for bopp, masking, electrical tape,foam tape, cloth tape,double sided. duct tape,PE,PET, PVC,kraft paper tape,non woven, papers etc jumbo rolls rewind.
     Optional Parts   1. Other size cutting shaft: It can be made as per the required core I.D.
2. Cutting supporter: For supporting log roll when cutting core below 38mm.
3. Auto blade grinder: It can keep the blade sharp for easy operation.   4. Safety cover: To protect operator during the production which is compliant to the CE regulation.       Main Technical Parameters

cutting width	1.0M 1.3M 1.6M
cutting precision	±0.1mm
max. cutting O.D	400mm
cutting core O.D	1"- 3"
min. cutting width	0.5mm
diameter of circular blade	Φ250 Φ300Φ350 Φ450

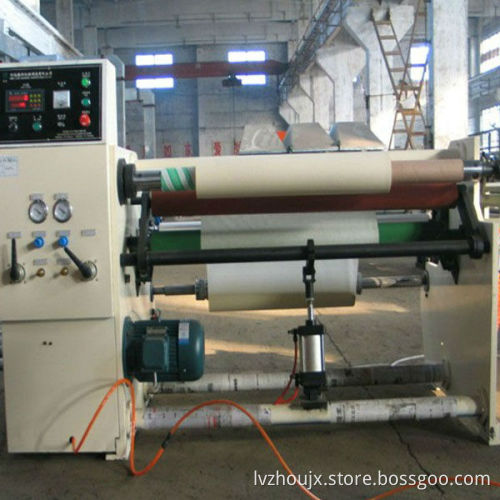

        Feature   Feature   1.        Main Driving Parts: AC motor with inverter is employed and the acceleration and the deceleration are fast and steady  .   2.        Central Control Unit: programmable central control is used and various sizes can be set on the same shaft for automatic transfer and cutting .   3.        Operating Panel: all functions are operated on the Human-computer  panel.   4.        Cutting Roll Positioning System: cutting roll positioning is controlled by the servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the utter seat .   machine pictures
