scotch logo making machine

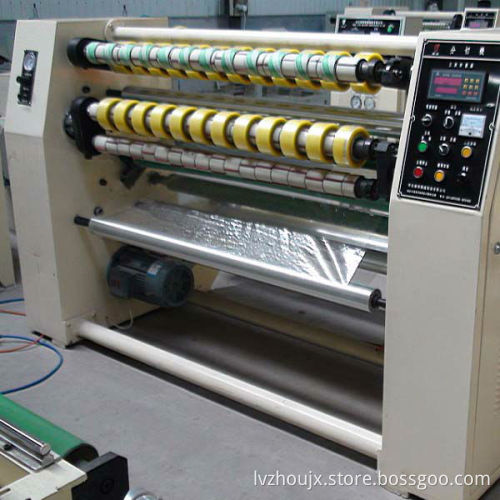

Specifications scotch making machine Used for slitting BOPP, adhesive tape, as well as other incoherent products.

                                                           scotch making machine   Usage:  Used for slitting BOPP, Transparent adhesive tape,      Feature:   Using four-shafts automatic exchange for rewinding without stopping the machine.   Automatic shaft change: Once the rewinding operation is accomplished. The machine will automatically perform shaft changes for convenient and efficient operations. Pneumatic brake: Brings the machine to an immediate halt for accurate positioning and labelling.      4. Automatic four-shaft exchange is adopted. Once rewinding operation is completed, the machine will a  utomatically perform shaft changes.     5. Pneumatic braking is to control the unwind tension. The rewind tension is controlled by the clutch and independent slide setting for free adjustment of the tensile force.       6. Pneumatic brake: bring the machine to an immediate halt and accurate positioning.   Technical parameters:

Effetcive width (mm)	1300
Max unwinding diameter (mm)	600
Max rewinding diameter (mm)	4shafts exchange 76.2-150 2shafts exchange 76.2-300
Min cutting width (mm)	12
Inside diameter of paper tube (mm)	76
Mechanical speed (M/min)	0-180
Size (mm)( L×W×H)	2230×1120×1360
Power of the machine(KW)	4

    workshop: The whole set of automatic 1300 type BOPP slitting machine including : 1300 slitting machine, 1300 paper core loading and unloading machine, paper core cutting machine and mini type rewinding machine.   paper core loading and unloading machine   Usage:   used for cutting adhesive tape paper pipe.    Technical parameters:

Max slitting diameter (mm)	Min slitting width (mm)	Inside diameter of paper tube (mm)	Thickness of papre pipe (mm)	Motor power (KW)	pressure kg/cm2
500	12	76.2	3-7	1.5	5
