scotch with logo making machine

Specifications scotch making machine Used for slitting BOPP, adhesive tape, as well as other incoherent products.

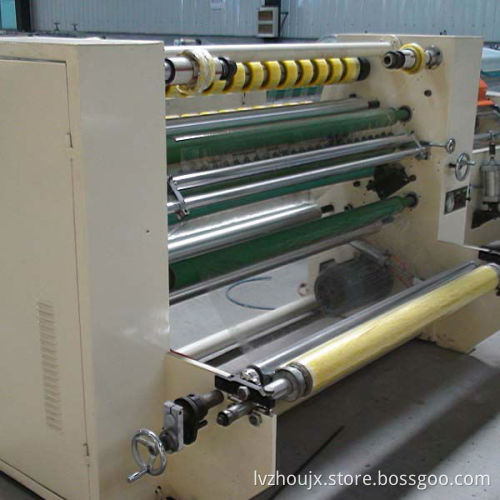

                                                                               Bopp tape litting coating machine Usage: Used for slitting BOPP tape. Feature: 1. The machine adopt central control then easy operate. 2. Three section meter counting to make sure the precise of rewinding length. 3. Pressure type brake to make sure the length precision when stop the machine. 4. The unwinding structure can equipped with noise reducing cover to reduce the working noise. 5. Two shafts rewinding finished then another two shafts auto exchange which can improve work efficiency. 6. Arc stretching bar which can flat the material feeding well.   Technical parameters:

Effective width (mm)	1300/1600mm
Max unwinding diameter (mm)	600mm
Max rewinding diameter (mm)	4shafts exchange 76.2-150mm
Min cutting width (mm)	12mm
Inside diameter of paper tube (mm)	76mm
Mechanical speed (M/min)	0-180m/min
Size (mm)( L×W×H)	2350×1250×1500mm
Power of the machine(KW)	4KW

  paper core loading and unloading machine   Usage:   used for cutting adhesive tape paper pipe.    Technical parameters:

Max slitting diameter (mm)	Min slitting width (mm)	Inside diameter of paper tube (mm)	Thickness of papre pipe (mm)	Motor power (KW)	pressure kg/cm2
500	12	76.2	3-7	1.5	5
