China Supplier Spiral Paper Tube Making Machine
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|
PLC implement central control.
Process different thickness

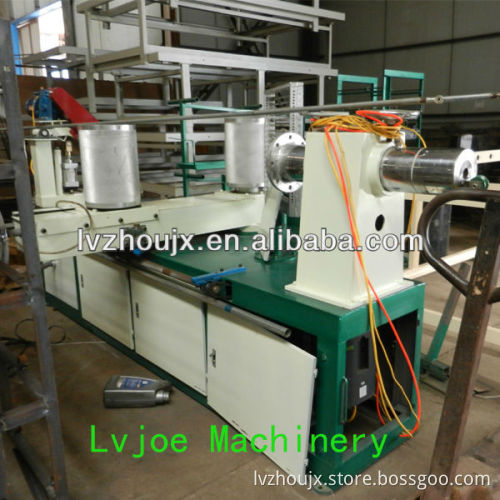

Spiral paper tube machine & slitting machine & Spiral paper tube machinery It adopts double side glue coating devices, the paper core is more sticky and stronger. The use of double-sided adhesive plastic trough independent stainless steel scraper polyurethane imports, production of a paper on the strength of stronger glue on one side of the traditional paper machine.
It adopts double photocell for the paper core length tracking, after get to the setup length, the paper core shall be cut off.
Circuit System with Remote Control function, users can travel in the office or in the field can be a computer monitor in the operation of plant equipment. If the circuit and system failure and other reasons, and in our communications tools and software control, plant technical personnel can be created to implement and maintain operational functions.
Drive mode | One chain type 7.5kw electric motor Three DC 2.2 kw electric motors | Quantity of operators | 1-2 |
Paper layers coiled | 3-18 layers | Main machine speed ratio | Turbine reduction ratio: 1:30 |
Reeling rod fixation method | Clamping type+ flanging type bi-direction fixation. | Tube reeling velocity | 1 -12 m /min. |
Reeling rod diameter | 12 -100 mm | Cutting method | Single-blade & saw blade both applicable |
Reeling machine head | 2-head | Main machine size | 1800x1800x2200 |
Main machine power | 7.5kw | Cut length method | Double infra-red rays + positioning plate |
Auxiliary power | 0.55kw | Speed regulation method | Frequency conversion +PLC |
Gumming method | Single-side or double-side gumming | Paper tube wall thickness | 1.0-8. 0mm |
Power supply | Four items | @ Computer PLC control with remote control port. | |
@ Setup of more than 80 functions, set mechanical operation conditions at will | @ Automatic gumming-stop | ||
@ Automatic cutting and automatic tube falling | @Low noise,65dB | ||
@ Automatic speed adjusting and automatic reset during cutting | @ Stainless gum basin, polyurethane glue knife,durable | ||
@ Multipoint operation panel or digital remote control function which is very convenient for operation | @ Disc cutter cuts off with square snick and stable performance. | ||
@ The frequency-conversion speed-regulation control can save electricity by 30-60% compared with conventional electromagnetic speed regulation. | @ Double infra-red rays Main machine conducts automatic speed regulation to ensure tube length with higher precision. | ||
1600A slitting machine:
automatic paper core cutting machine:
