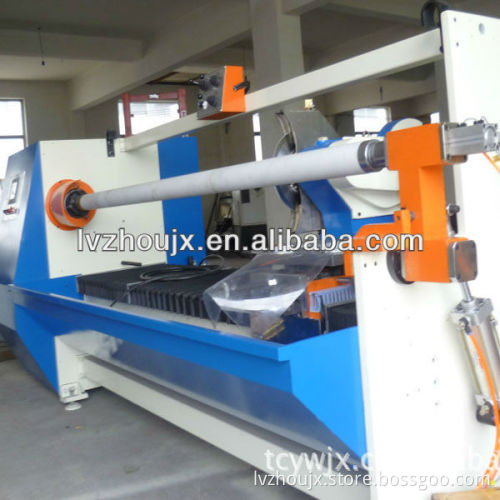

film slitting machine

Specifications Application

Suitable for slitting rewinding big diameter BOPP tape, aluminum foil tape, foam tape, and non-adhesive film

                                                       slitter rewinder for jumbo rolls Application:  Suitable for cutting various adhesive tapes. Such as masking tape, double side tape, PVC Insulation tape.   Feature:    1. Width setting is controlled by servo motor with ball screw and guide rails to make accuracy movement. 2. All functions are operated under LCD touch panel control, which is operator friendly and easy for data setting. 3. Central control system is PLC unit, it can cut various sizes on one log roll by changing modes automatically. 4. Knife feeding is controlled by hydraulic system, the cutting speed is adjustable in high/low. 5. Equipped with knife angle manual adjustment, cutting angle can be changed from 8 to +8 degree automatically for making roll surface smoothly. 6.It’s equipped with finished products fast unloading device. 7.Waste collect system can choose left-right moveable surface rewinding type, servo motor control center rewind type and blower fan collect type. 8.Slitting blade can use air blade, shear blade, razor blade for different material slitting. 9.The unwind system has EPC LPC device, hydraulic type jumbo roll uplifting device and material receiving platform. 10.The unwind system can choose shaft/shaftless connect type, shaft/shaftless separate system.         Technical parameter

Machine width	1.3M/1.6M
Min. slitting width	20mm
Max. unwind diameter	1200mm
Max. rewind diameter	500mm
Max. speed	200M/min
Paper core I.D.	3/6"
Power source	380V 3-phase 50HZ
Air source	0.6 MPa
