High Quality Automatic Spiral Paper Tube Making Machine

Specifications Spiral Paper Tube Making Machine

PLC implement central control.

Process different thickness

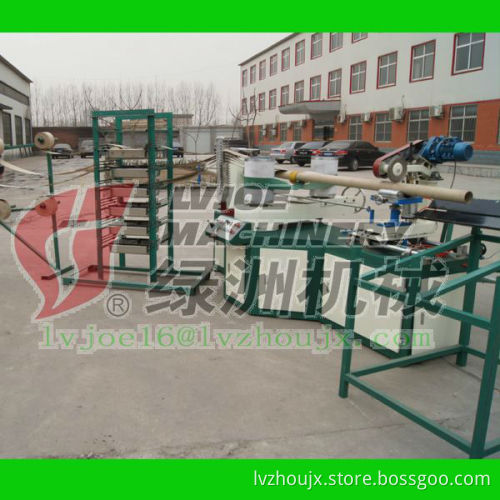

Spiral paper tube machine  & slitting machine & Spiral paper tube machinery    250BA Paper Tube Machine with three head Main Specification and Equipment Parameter

Tube Diameter	20-200mm	Number of Roller	23 plies
Tube Max Thickness	15mm	Rewinding Noses	3 noses
Operator	1-3	Productive Speed	3-15m/min
Way of Cutting	Pneumatic	Way of Gluing(Auto)	double sides
Paper-shelf Type	crisscross	Way of Tube Down	withdraw
Power of Mainframe	11KW	Power input	380V 3phase 4wire 50Hz

Size (mm)

Mainframe(L*W*H)	3600*1850*1800	Area Space(L*W)	15000*8000
Wheel Hub Diameter	270	Wheel Hub Height	450
Tread	1000-1300	Total Weight	2600kg

Driving System

Modle of Main Motor	11KW Weihai	Mainframe Rotate Speed	1400r/min
Hub Max Rotate Speed	48r/min	Hub Output Torque	1800N.m
Reductor Type	WPO155	Modle of Driving Chain	12A*2
Wheel Hub Drive	3 wheel	Cutting Motor	A ball
Glue Pump	1.5KW gear pump	Screw	China
Slideway	40mm round slideway	Bearing	Haerbin

Control System

PLC Controller	Delta DVP-24ES00R2	Edition of Program	JS-A3.1
Inverter	18KW Anchuan	Driving Components	CHNT
Signal Components	Omron	Pneumatic Components	AIRTAC
Angle Setting Motor	——	Cutting Blade Control Device	Pneumatic
Way of Fixing Length	Infrared	Synchronism Control Cutting System	——
