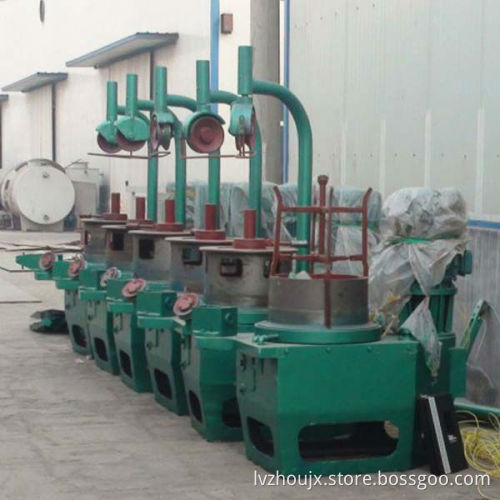

wire rod drawing machine

Specifications wire rod drawing machine can draw wire

                                                                         wire rod drawing machine Feature : The wire drawing machine is the latest gear type drawing machine,it can draw High Carbon wire, low-carbon copper and aluminium.Apply to wood screw,wrie nail,lead,steel wire rope and sdpring.controled by electricity,safty operation,low noise,high effective.   specification:

The diameter of drum	550 mm
Max input diameter	6.5 mm
Min output diameter	2.2 mm
Rotation speed	27-168 r/min
Each motor power	15-22kw
Each weight	1400 kg
Overall dimension	6050*1685*2100 mm



Type:	LW 1 -6/550
Description:	LW1-6/550 wire drawing machines, drived by gears, are capable of drawing rod wires of high-,medium-,low-carbon steel,copper,aluminium,ect.and appliable to manufacturing industries such as wood screw,nail, conducting wirerope for electrician use,spring,etc. With electrical control,this kind of machine is safe in operation,low in noise,and high in effciency.
Specifications:	Specifications: Modle: LW1-6/550 Diameter of the spool(mm): 550 Drawing range(mm): 6.5-2.2 Speed of the spool(rpm):27-168 Power of a single machine(kw): 15-22 Weight (kg): 1400
