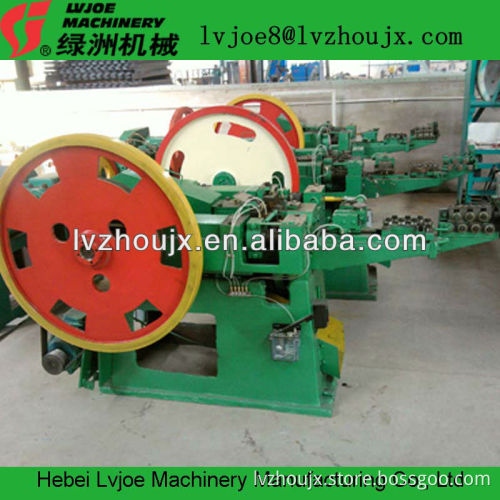

Z94-C wire nail making machine,China machine

Specifications Nail making machine main parts(shaft,cam,gear) are made of high grade steel with professional heatreatment,

Nail making machine   Feature :   1. certify by CE and ISO 9001   2.Nail making machine main parts(shaft,cam,gear) are made of high grade steel with professional heatreatment,so as to ensure longer working life and less time maintance.   3.Each model machine could make different kinds size nail,the nail length could adjust on machine and nail diameter need feed with related diameter coil wire   4.Each nail making machine supply related nail mould ,nail knife and punch pin ect spare parts    MACHINE SPECIFICATION:

parameter	unit	Z94-5.5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Dia of nail max	mm	5.5	4.5	3.4	2.8	1.6
Dia of nail min	mm	3.7	2.8	1.8	1.2	0.9
Length of nail max	mm	150	100	80	50	25
Length of nail min	mm	80	50	30	16	9
Dsigned out put	pcs/min	200	260	320	350	450
Moter power	kw	5.5	4	3	2.2	1.5
Weight(approx)	kg	2500	2000	1400	1200	560
Overall dimensions	mm	2800x1800x1800	2200x1600x1650	2000x1400x1400	1700x1300x1400	1500x1300x1200
