automatic production line for paper core
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|

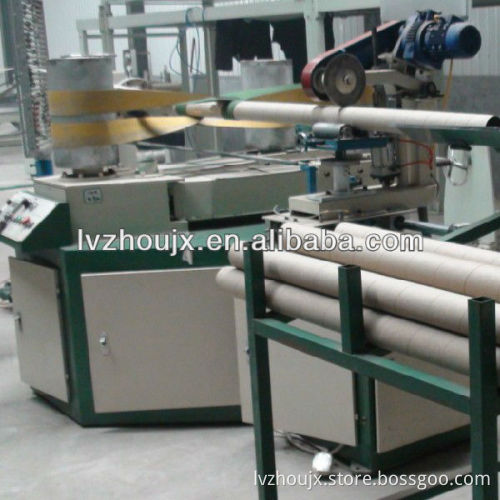

automatic production line for paper core First .Introduction This machine is used for producing spiral paper core. Second.Specification: 1. Core Winding Machine is used for making all kinds of paper core indifferent diameters and lengths. 2.Tissue Paper Core Winding Machine is with PLC,touch screen,tri-locker and single cutter,more stable function and easy operation. 3. Paper Core Winding Machine adopts double side glue coating device,paper core is more sticky and stronger.The use of double-sided adhesive plastic through independent stainless steel scraper polyurethane imports,production of paper on the strength of stronger glue on on side of traditional paper machine. 4. Paper Core Winding Machine is with double photocell for paper core length tracking,after getting to the setup length,paper core shall be cut off. 5.Paper Core Winding Machine has function of automatic memory,automatic preservation,automatic fault display. Third,LV-150BA Paper Core Making Machine
Transmission Mode | One 7.5kw chain motor, three direct supply 2.2kw motor | ||
Layer of the winding paper | 3-18 layers | Operation person | 1-2 person |
Fixed mode of the rolling bar | Clamping Mode+ flange style double direction fixation | Main engine speed ratio | Turbine speed deceleration ratio: 1:30 |
Rolling bar diameter | 25-150mm | Tube Rolling speed | 1-12m/min |
Rolling machine head | Three headpiece | Cutting way | Single knife or saw |
Main engine power | 7.5kw 6.6kw | Specification of the main engin | 2600×1800×1500 |
Auxiliary power | 0.55kw | Length fixing way | Double infrared ray+ position baffle |
Coating way | Single side or double sides | Speed regulating control | Frequency converter +PLC |
Power | Four phase | Thickness of the paper core wall | 1.5-10mm |
More than eighty items’ function setting, setting the running condition of the machine arbitrarily | Automatic coating |
| |
Automatic cutting, automatic tube falling | Very low noise, less than 65 decibel | ||
Automatic transmission and reply during the cutting period | Stainless steel rubber tray, polyurethane reamer, durable in use | ||
Multi-point operation panel or digital remote control, it is easy to operate | The disc cutter can positively cutting, and make the incision more smooth, the performance is more steady. | ||
Frequency converter to control can save 30%-60% electricity than the ordinary electromagnetic speed reguating | Double infrared ray, the main engine can change the speed automatically, and make the length of the paper core more accurate. | ||
| Computer PLC control, with the remote control port | ||
