paper core production line
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|

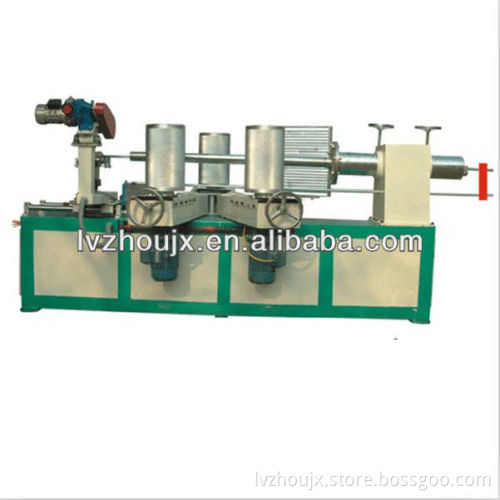

paper core machine Usage : Suitable for making different thickness and different core diameter paper tube Feature 1. This model is the professional machine to produce different thickness and core diameter ,which is advanced in designing and convenience in operation . 2. Adop PLC implement central control and speed adjustable 3. auto cutting by blade without stopping machine . 4. Cut length can be setted automatically 5. Adopts spiral bevel gear, stable . 6. All electrical parts are high quality brand and customer can choice convenient brand Specification:
Dividing mode | One chain type 1Jkw electric motor Three DC 3.0kw electric motors | Quantity of operators | 2-3 |
Paper layers coiled | 3-24 layers | Main machine speed ratio | Turbine reduction ratio: 1:30 |
Reeling rod diameter | 30-200mm | Cutting method | Single blade & saw blade both applicable |
Reeling machine head | 3 heads | Main machine size | 3200*2000*1800 |
Main machine power | 11kw 9.0kw | Cut length method | Double infra-red rays + positioning plate |
Auxiliary power | 0.55kw | Speed regulation method | Frequency conversion + PLC |
gumming method | Single-side or double-side gumming | Paper tube wall thickness | 1.5-15mm |
Power supply | Four items | Computer PLC control with remote control port | |
Setup of more than 80 functions, set mechanical operation condition at will | Automatic gumming-stop | ||
Automatic cutting and automatic tube falling | Low noise, less than 65dB | ||
Automatic speed adjusting and automatic reset during cutting | Stainless gum basin polyurethane glue knife durable | ||
Multipoint operation panel or digital remote control function which is very convenient for operation | Disc cutter cuts off with square snick and stable performance | ||
The frequency conversion speed-regulation control can save electricity by 30%-60% compared with conventional electromagnetic speed regulation | Double infra-red rays main machine conducts automatic speed regulation to ensure tube length with higher precision | ||
