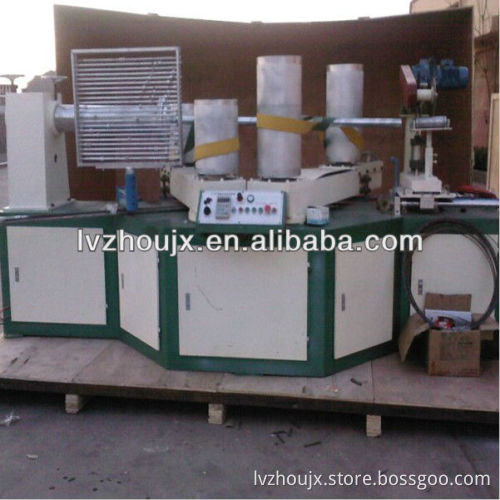

paper core winder machine

Specifications Spiral Paper Core Winder is used for making all kinds of paper core indifferent diameters and lengths.

                                                                    paper core winder machine Feature: High Speed Spiral Paper Core Winder
1.Programmed Control System
2.Meter Counter
3.Frequency Inverter
4. Touch Screen   Specification:   1. ,paper core is more sticky and stronger.The use of double-sided adhesive plastic through independent stainless steel scraper polyurethane imports,production of paper on the strength of stronger glue on on side of traditional paper machine.       2.Paper Core Winder Machine is with double photocell for paper core length tracking,after getting to the setup length,paper core shall be cut off.       3.  Paper Core Winder Machine has function of automatic memory,automatic preservation,automatic fault display.       4. Paper Core Winder Machine adopts imported single disc cutter to cut the paper core,it is high precision and more bearable no longer incision more precision without wasting.       5. Paper Core Winder Machine adopts dialoge monitor,it is iwth function of automatic store,trouble displa,working position.       6. The transmission parts is with extreme quiet design which is special treatment,high efficienty and low maintenance.     Technical parameter

Output	Upto 15 mts/min. depending upon the sizes of the tube
Minimum inner diameter	25 mm
Maximum inner diameter	300 mm
Maximum wall thickness	16 mm by simple Saw cutter (upto 3 mm fine cutter)
Motor for dust collection	0.75 KW
Saw Blade drive	2 KW
Approx. size of the machine	3000 mm long x 2000 mm wide x 2500 mm Ht x 800 kgs weight.
