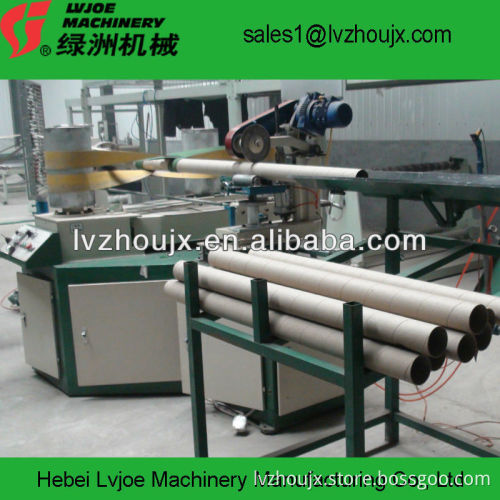

PLC Control 250BA Paper Core Making Machine with CE Certificate
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|
plc control with touch screen
easy and safe to operate
high efficiency, low cost
Paper Core Making Machine Usage: Apply to make kinds of paper tubes. Specification:
Dividing mode | One chain type 1Jkw electric motor Three DC 3.0kw electric motors | Quantity of operators | 2-3 |
Paper layers coiled | 3-24 layers | Main machine speed ratio | Turbine reduction ratio: 1:30 |
Reeling rod diameter | 30-200mm | Cutting method | Single blade & saw blade both applicable |
Reeling machine head | 3 heads | Main machine size | 3200*2000*1800 |
Main machine power | 11kw 9.0kw | Cut length method | Double infra-red rays + positioning plate |
Auxiliary power | 0.55kw | Speed regulation method | Frequency conversion + PLC |
gumming method | Single-side or double-side gumming | Paper tube wall thickness | 1.5-15mm |
Power supply | Four items | Computer PLC control with remote control port | |
Setup of more than 80 functions, set mechanical operation condition at will | Automatic gumming-stop | ||
Automatic cutting and automatic tube falling | Low noise, less than 65dB | ||
Automatic speed adjusting and automatic reset during cutting | Stainless gum basin polyurethane glue knife durable | ||
Multipoint operation panel or digital remote control function which is very convenient for operation | Disc cutter cuts off with square snick and stable performance | ||
The frequency conversion speed-regulation control can save electricity by 30%-60% compared with conventional electromagnetic speed regulation | Double infra-red rays main machine conducts automatic speed regulation to ensure tube length with higher precision | ||
