2 Machine Heads PLC Control Paper Core Machine with CE Certificate

Get Latest Price

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Specifications high speed, efficiency, low investment

automatic, 2 machine heads

equipped with PLC control

automatic gluing

safe to operate

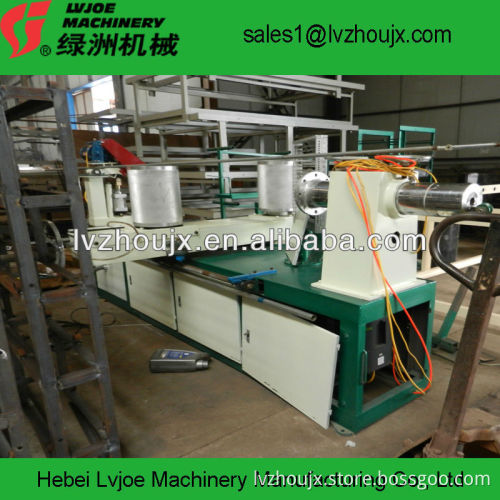

LV-80B Paper Tube Machine Usage: Apply to make various kinds of paper cores. Specification:

Drive Mode	One chain type 7.5kw electric motor	Quantity of operators	1-2
Paper layers coiled	3-18 layers	Main machine speed ratio	Turbine reduction ratio: 1:30
Reeling rod fixation method	Clamping type + flanging tube type bi-direction fixation	Reeling velocity	1-12m/min
Reeling rod diameter	15-100mm	Cutting method	Single-blade & saw blade both applicable
Reeling machine head	2 heads	Main machine size (mm)	230016001300
Main machine power	7.5kw 6.6kw	Cut length method	Double infra-red rays + positioning plate
Auxiliary power	1.1kw	Speed regulation method	Frequency conversion + PLC
Gumming method	Single-side or double-side gumming	Paper tube wall thickness	1.5mm-8mm
Power supply	Four items	Computer PLC control with remote control port
Setup of more than 80 functions, set mechanical operation conditions at will		Automatic gumming-stop
Automatic cutting and automatic tube falling		Low noise, less than 65dB
Automatic speed adjusting and automatic reset during cutting		Stainless gum basin, polyurethane glue knife, durable
Multipoint operation panel or digital remote control function which is very convenient for operation		Disc cutter cuts off with square snick and stable performance
The frequency-conversion speed-regulation control can save electricity by 30-60% compared with conventional electromagnetic speed regulation		Double infra-red rays main machine conducts automatic speed regulation to ensure tube length with higher precision
