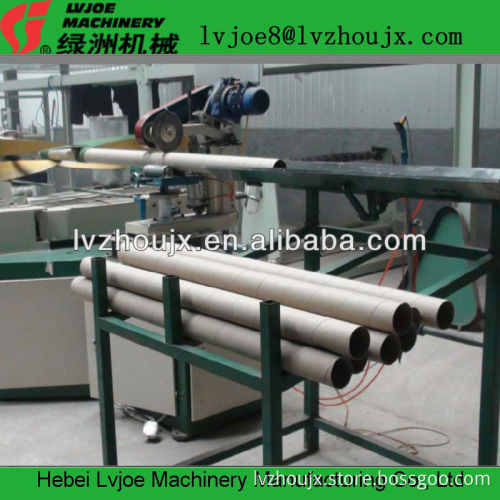

Specifications Paper Tube Winder is used for making all kinds of paper core indifferent diameters and lengths.

                                                                        paper machine winders USE: Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy, food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc. FEATURE: 1.Low price,strong practicability,stable performance; 2.Automatically cut, automatically fall pipe,automatically change speed and revert; 3.Computer PLC control,touch screen man-machine interface operation; 4.Round knife cutting,incision more smooth,performance more stable; 5.Stainless steel gluing box,with polyurethane scraper and high carbon steel plastic knife,durable in use; 6.Automatically glue.

Technical Parameter		Control System
Number of roller	3-8 layer	PLC controller	Delta
Tube diameter	15-150 mm	Touch screen	MCGS
Tube wall-thickness	0.5-5 mm	Transducer	Delta
Core mould fixed way	Flank	Electric part	CHINT
Winding head	2	Signal part	SHHG
Cutting way	Round knife	Pneumatic part	AIRTAC
Gluing way	Single / Double sides	Fix length way	Optoelectronic switch
Operator	1-2 person	Equip device
Winding speed	3-20 m/min	Paper shelf type	Crisscross
Speed control	Transducer	Auto fall tube shelf	Have
Driving System		Glue system	Have
Main motor	4.0 KW	Belt	2
Reducer type	WPO120	Core mould	2
Cutting motor	Rawson	Waxing device	Optional
Glue pump	1.5 KW	Heat sealing device	Optional
Mainframe size & Weight
Mainframe size	2500*1600*2000 mm	Weight	1500 KG
Area space		10000*60000 mm
