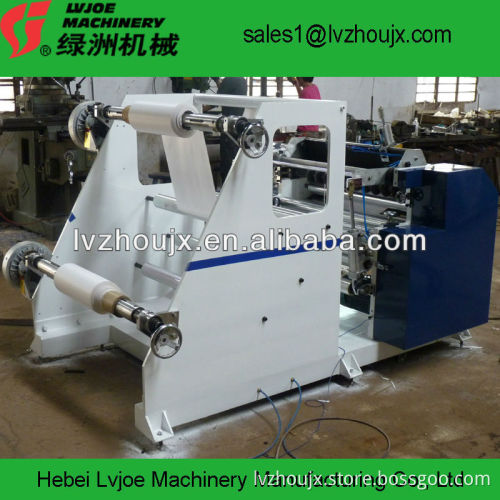

Automatic 2 Ply Thermal Paper Slitting and Rewinding Machine

Specifications used to slit and rewind thermal paper automatically

easy and safe to operate,

Automatic Thermal Paper Slitting and Rewinding Machine   Usage: It specializes in slitting fax paper, ATM paper, POS paper, bond, thermal paper, etc. It adopts surface rewinding method and automatic control fixed length. It’s the advanced small paper roll auto slitting equipment at home and abroad.   Features: The machine uses frequency conversion to control speed. Function setting adopts brainpower micro-control. Length setting can be set according 50cm 6000cm and includes two-stage speed. Unwinding part has FZ-100MN magnetic power controller. The machine is internally installed with autotype printing function (red, blue). It only needs adding ink.   Parameter:

Max width	900mm
Max unwinding diameter	700mm
Roll paper core ID	2-76mm (3”)
Standard slitting width	35-450mm
Max rewinding diameter	160mm
Rewinding paper core ID	0.3”, 0.5”, 1”, 1.5” (can be customized according to the customers’ requirement)
Slitting speed	12-150m/min
Total power	4.5kw
Power source	380V 50HZ
Overall dimension (L*W*H)	2m*1.9m*1.1m
Total Weight	About 1100kg
