adhesive tape label printing machine

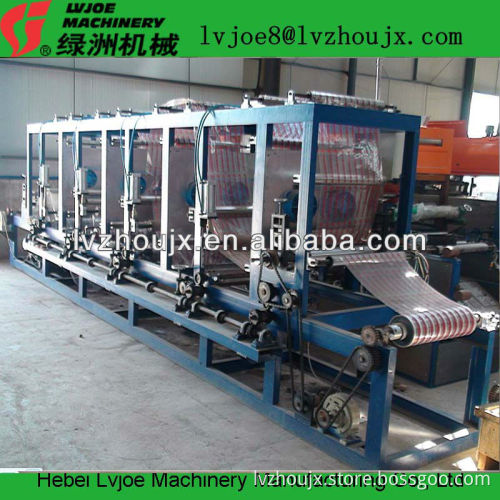

                                                LVY-1300B Type Gravure Printing Machine      Feature:The machine comes with two-color and three color and four color gravure printing cylinder, printing the same width as the width of coating substrates.   Printing Material:    OPP: 15-60μm             BOPP: 15-60μm   PET: 12-60μm                 CPP: 15-60μm   PE: 30-100μm                 NY: 15-50μm   PVC: 20-80μm                Paper   Cellophane: 20-30μm           complex film: 15-60μm     Printing Part:   1) impressing roller is coaxial type, can be replaced very fast   2) impressing type: double swing arms manual boosting pressure (standard configuration)   3) impressing roller: diameter: 120mm; Nitrile Rubber, Shore (A) 68degree to 72degree   4) max pressure: 300kg   Reference:

type	LZ—600	LZ—1100	LZ—1300
Efficient width	600 mm	1100 mm	1300 mm
Speed of machine	10~60 m/min
Plate roller diameter	125~300 mm
Power of machine	5.5——10 Kw
