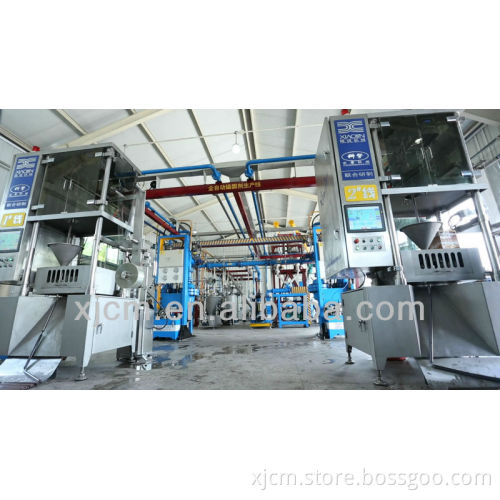

Full-automatic Resin Anchoring Agent Production Line

Equipment Function:

1 The production line realizes full automation from raw materials to casing and warehousing.
2 The whole line implements PLC program control and touch screen human-computer interface operation, and all equipment can be operated singly.
3 Cement glue and curing agent are subjected to double-component parallel classification and quantitative filling.
4 Anchoring agent automatic shearing, the end socket is tightly sealed and leakage-free, and has good straightness.
5 The product diameter is Φ23mm (regular size), the length can be set at will in the range of 100 to 1,500 mm (products of special specifications can be produced).
6 Take the filling equipment (Φ23*350mm) as the example: output per minute ≥35 pieces, output per shift ≥10,000 pieces, annual capacity >5 million pieces, can be regulated through adjusting mechanism, rate of finished products ≥98%
7 The whole production line is equipped with an excess material reverse-flow system and a thermostat, so that the cement glue temperature can be set at will.
8 The whole production line is closed, and chemical smell in the workshop (formaldehyde, benzene, ammonia, radon and TOVC) meets national standard.

ChinaCoal Pingshuo Group Co., Ltd are using our production line.   China Shenhua Group are using our production line.   China Shanneng Group Yanxin Company are using our production line.   Our client from South Africa visited our production line in China Shanneng Group Yanxin Company.   Our clients from Argentina visited our production line in China Shanneng Group Yanxin Company.   China Jinmei Group purchased six production line from our company.   Our client from Brazil visited our production line in China Jinmei Group.   China Shanxi Huozhou Coal Electricity group are using our production line.
