12 Inch Diesel Engine Gravel Pump

12 Inch Diesel Engine Gravel Pump

Introduction:

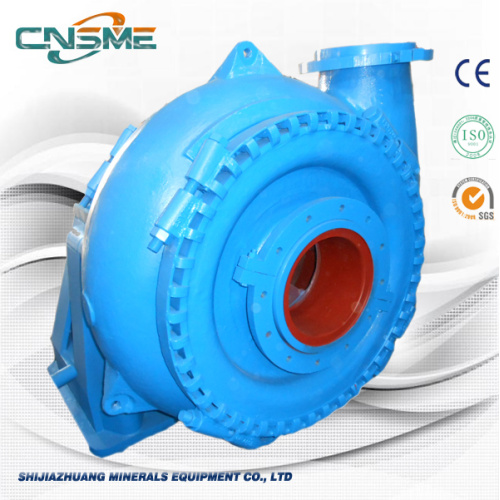

SG-300G is a 12-inch gravel pump, which can be driven by elec. motor or diesel engine. SG is the standard type with normal discharge head, and also, we have this type SHG-300G with a higher discharge head to meet the customer's different applications.

SG series Sand Gravel Pump is a single stage, single casing, centrifugal horizontal pump. Large flow path make pump allow large particle solids. Simple structure and high chrome alloy liner make the Sand Gravel pump long life and easy maintenance.

A brief introduction of the slurry pumps we offer:
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Froth Pump Series
Slurry Pump Parts:
1. Metal Pump Parts; 2. Rubber Pump Parts; 3. OEM Pump Parts

Specifications:

Explosive View of SG Gravel Pumps:

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

Performance Curve:

Projects of SME Gravel Pumps:
