Product Description

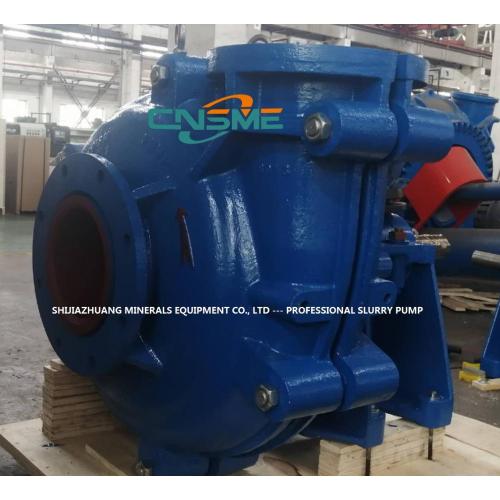

Complete Replacement Slurry Pumps

Introduction:

Our slurry pumps are designed and engineered for the most rugged and demanding installations. Our slurry pumps have exceeded operating expectations in the past 10 years, and provided hyaulic fracturing companies unprecedented uptime, reliability and efficiency. We supply pumps for not only mining and minerals, but industrial, power plants, paper and pulp and other applications.

Type SM are rugged heavy duty minerals processing slurry pumps for medium to lower heads. This model SM/200E is equivalent to Warman 10/8E-M slurry pump.

SM Slurry Pumps are used for medium abrasive and lower solids concentration applications with slurries pH range 5~14. Material of wet-end parts can be natural rubber according to the customers' requirements, to pump corrosive mud. SM pumps were originated from outside China, and they belong to Weir Minerals Slurry Pumps.

SM-200E, SM-200F are the only two models that SME makes. They are metal lined and rubber lined slurry pumps with discharge size of 8-inch, and SM slurry pumps are slightly different in appearance from the standard SH and SL pumps, although theoretically they belong to the same range. SM-200E is much more cost effective when we chose an 8-inch pump, compared with other models with the same discharge sizes.

A brief introduction of the slurry pumps we offer:
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Froth Pump Series

Specifications:

Model
SM-200E

Outlet
8-inch

Capacity
666-1440m3/h

TDH
14-60m

Rated Motor Power
120Kw

Speed
600-1100r/min

NPSH
4-10m

Explosive View of SME SM Medium Duty Slurry Pumps:

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Material Chemical Requirements, Weight %

Designation Material Name C Mn Si Ni Cr Mo Cu P V S Description Hardness

A03 Ni-Hard 1 3.0-3.6 0.3-0.7 0.3-0.5 3.3-4.8 1.5-2.6 0-0.4 ... ≤0.3 ≤0.15

A05 Ultrachrome 2.92 0.98 0.54 0.8 26~28 ≤0.8 ... 0.062 .. 0.051 27% Cr Erosion Resistant White Iron 58-62HRC

A06 NI-Hard 4 3.2 0.2 1.5 4 8 0.5 ... 0.15 ... 0.12 Martensitic White Iron 62-67HRC

A07 15/3 Chrome/Moly Iron 2.8-3.2 0.5-1.2 0.8-1.0 ... 15-17 2.8-3.2 0.8-1.2 ... ... ... Chromium/Molybdenum

A33 1.55 1.2 1.29 1.89 36.7 1.92 1.31 ... ... ... Corrosion-resistant Chrome

A49 Ultrachrome 1.57 0.71 1.36 2.01 28 1.96 1.32 0.038 ... 0.027 28% Cr, Low C, White Iron

A61 Hyperchrome 4.4-4.6 2.0-2.5 0.3-0.8 ... 30-32 2.5-3.0 ... ... 0.2-0.3 ... Hypereutectic white iron

R55 Standard Natural Rubber Natural Rubber for erosive applications 65 Shore

U01 Wear Resistant Polyurethane Polyurethane Elastomer 78 Shore

Typical Applications:

Tailings

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Performance Curve:



Projects with SME SM Slurry Pumps:
