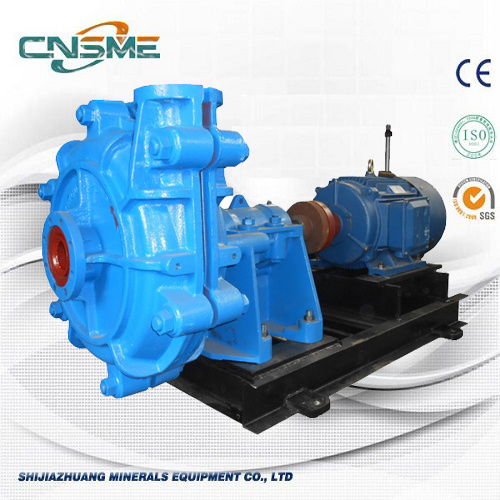

Horizontal High Head Pump
Introduction:
Type SBH are hard metal high head slurry pumps designed for heavy duty applications where require high pressures, better for long distance slurry transportation. SME SBH Series pumps are fit for a variety of applications ranging from filter press feeds to pipeline transport staging pumps.
Slurry pump high pressure SBH series of specially developed for pumping medium and high pressure for pumping the sludge to a greater distance. High-pressure slurry SBH Series pump can replace several pumps one. SBH series pump can pump the solution at an average particle size, moreover, the pressure of each step does not exceed 90 meters.
SBH high pressure minerals processing hard metal slurry pumps are heavy duty, mainly used for applications with big flow, and high density slurries.
A brief introduction of the slurry pumps we offer:
Froth Pump Series
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Specifications:
|
Model |
SBH-75E |
|
Outlet |
3-inch |
|
Capacity |
126-252m3/h |
|
TDH |
12-97m |
|
Rated Motor Power |
120Kw |
|
Speed |
600-1400r/min |
|
NPSH |
2-5m |
Construction of SBH Metal Pump:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Tailings
Heavy Mining
Ash Handling
Cyclone Feeds
Pulp and Paper
Abrasive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Heavy Refusal Removal
Performance Curve:
Projects with SME Slurry Pumps:
