Introduction:

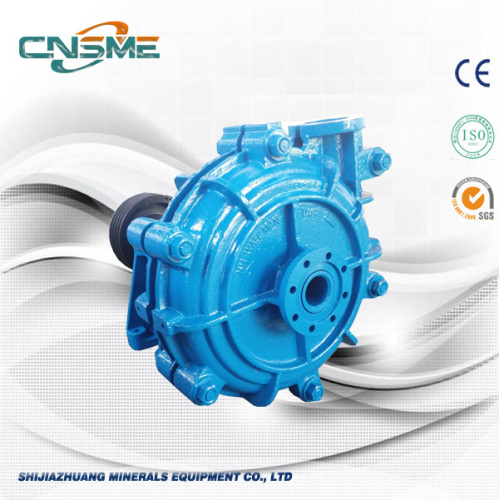

High pressure slurry pumps of type SBH is cantilevered, horizontal, axial suction centrifugal slurry pump with a double hull. The position of the pump output can according to the need for an interval of 45 ℃, rotating eight different angles, and to install and use.

Material:

Housing high-lifting slurry pump has a removable wear-resistant metal lining, impeller, Reservations, protective cover, all of the flow is used durable metal rubber.

Using:

In the range of small flow and low lift height, can transport corrosive grinding slurry solution; in the range of high lift heights and great expense to carry light grinding slurry solution. Suitable for transportation of slurry solution with high corrosion and high density for metallurgy, ore, coal, electricity, building materials and so on industry bodies, this model can be used pumps multistage series connection.

Seal type:

 Sealing filler expeller seal, seal and filler expeller, mechanical seals and so on.

Drive form:

DC direct drive, CR parallel belt drive, ZVZ top and bottom belt drive,, CV vertical belt drive, and so on.

A brief introduction of the slurry pumps we offer:
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Froth Pump Series

Specifications:

Construction of SBH Slurry Pump:

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Typical Applications:

Tailings

Heavy Mining

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Heavy Refusal Removal

Performance Curve:

Projects with Slurry Pumps:
