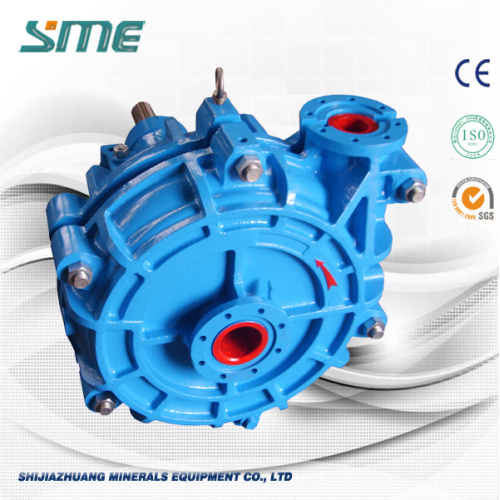

Centrifugal High Pressure Slurry Pumps
Introduction:
SBH Series Metal Slurry Pump Specifations & Prices
Pump
Model
S×D
(inch)
Allowable
Max. Power
(kw)
Material
Clear Water Performance
Impeller
Capacity Q
Head
H(m)
Speed
n(r/min)
Max.Eff.
η%
NPSH
(m)
No. of
Vanes
Vane Dia.
(mm)
Weight
(kg)
Impeller
m3/h
l/s
SBH/25C
1.5×1
30
Metal
(A05)
16.2-34.2
4.5-9.5
25-92
1400-2200
20
2-5.5
5
330
318
SBH/50D
3×2
60
68.4-136.8
19-38
25-87
850-1400
47
3-7.5
457
750
SBH/75E
4×3
120
126-252
35-70
12-97
600-1400
50
2-5
508
1250
SBH/100F
6×4
260
324-720
90-200
30-118
600-1000
64
3-8
720
2528
SBH/100S
6×4
560
324-720
90-200
30-118
600-1000
64
3-8
720
2880
SBH/150S
8×6
560
468-1008
130-280
20-94
500-1000
65
4-12
711
3200
SBH/75E: SBH-- SME High Head Slurry Pumps, 75-- Discharge Size, E-- Frame size, with max. motor power: 120Kw.
Type SBH are hard metal high head slurry pumps designed for heavy duty applications where require high pressures, better for long distance slurry transportation. SME SBH Series pumps are fit for a variety of applications ranging from filter press feeds to pipeline transport staging pumps.
The high heads along with sturdier wear parts makes these pumps some of the most rugged in the SME slurry pump line. Extensive exterior ribbing allows for higher heads to be reached with a single pump, and bulked up wet end parts handle the toughest applications in the field today.
SBH high pressure minerals processing hard metal slurry pumps are heavy duty, mainly used for applications with big flow, and high density slurries.
A brief introduction of the slurry pumps we offer:
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Froth Pump Series
Specifications:
|
Model |
SBH-75E |
|
Outlet |
3-inch |
|
Capacity |
126-252m3/h |
|
TDH |
12-97m |
|
Rated Motor Power |
120Kw |
|
Speed |
600-1400r/min |
|
NPSH |
2-5m |
Construction of SBH Metal Pump:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Tailings
Heavy Mining
Ash Handling
Cyclone Feeds
Pulp and Paper
Abrasive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Heavy Refusal Removal
Performance Curve:
Outline Dimensional Drawing:
