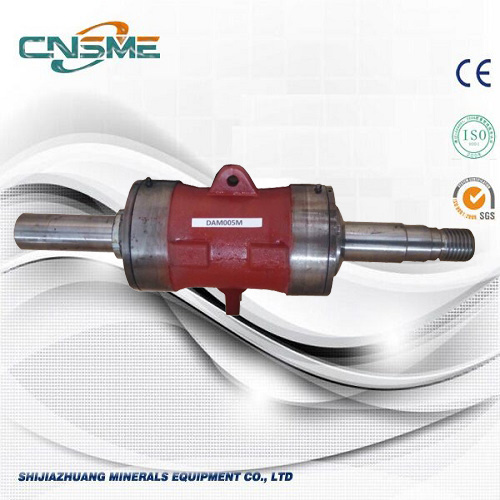

Slurry Pump Bearing Cartridge Assembly

Slurry Pump Bearing Cartridge Assembly

Introduction:

Shaft and bearing assembly:

A large diameter shaft with a short overhang minimises deflection and vibration. Heavy duty doller bearings are housed in a removable bearing cartridge.

Pump Base:

A one piece casting cradles the cartridge bearing assembly. A minimum number of through bolts hold the pump casing to the frame. A means of impeloler adjustment is provided in a convenient position below the bearing housing.

Features:

Alternative shaft sealing arrangement are fully interchangeable within the same pump;

An extremely heavy duty shaft with a short diameter overhang minimises deflection and vibration;

Heavy duty grease lubricated roller bearings that are protected with grease purged labyrinth seals at both ends.

A brief introduction of the slurry pumps we offer:
Slurry Pump Series:
1. Metal Lined Slurry Pump, SH Type; 2. Rubber Lined Slurry Pump (SHR Type); 3. Hi-Pressure Slurry Pump (SBH Type);
Gravel Pump Series:
1. Hard Metal Sand Pump (SG, SHG Type); 2. WN Dredging Pump (WN Type);
Sump Pump Series:
1. Metal Vertical Slurry Pump (SV Type); 2. Rubber Vertical Slurry Pump (SVR Type);
Local Pump Series:
1. Power Plant Slurry Pump (ZBG Type); 2. Coal Washing Slurry Pump (ZJ Type);
Froth Pump Series

Explosive View of Slurry Pump (Heavy duty Metal):

Strcture of Bearing Assembly:

SME Slurry Pumps:

SME Slurry Pump Parts (Metal Lined & Rubber Lined):
